1415180

Active

Phoenix Contact

CABLE GLAND 9-16.99MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 9-16.99MM M25

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415180	G-INB-M25 Series

Color	Black	Black, Silver, Light Gray
Includes	Strain Relief, O-Ring, Seal	Strain Relief, O-Ring, Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm	16.99 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in	0.669 in
Outside Cable Diameter (Min) [Min] [diameter]	9 mm	9 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.354 in	0.354 in
Thread Length	0.472 in	0.276 - 0.472 in
Thread Length	12 mm	7 - 12 mm
Thread Size	M25	M25
Type	Cable Gland	Cable Gland

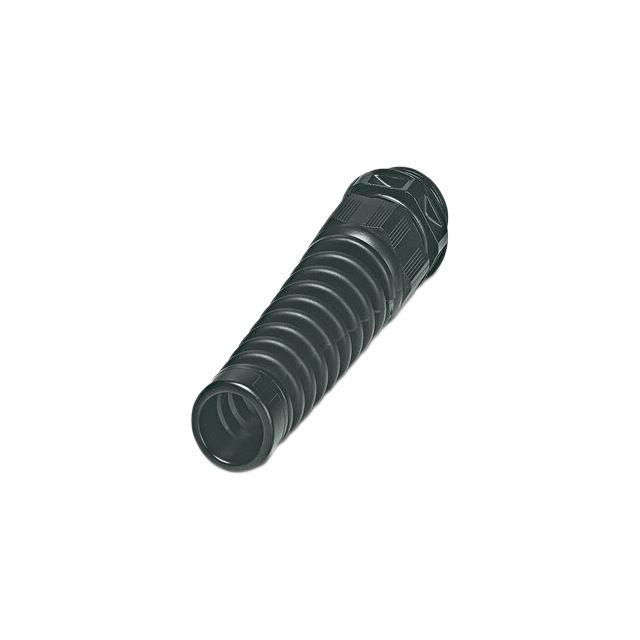

CABLE GLAND 9-16.99MM M25

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Material	Type	Thread Length	Thread Length	Thread Size	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 1415180	9 mm	0.354 in	O-Ring, Seal, Strain Relief	Polyamide (PA), Nylon	Cable Gland	0.472 in	12 mm	M25	Black	16.99 mm	0.669 in	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	100 °C	-40 °C
Phoenix Contact 1415183	9 mm	0.354 in	O-Ring, Seal, Strain Relief	Brass, Nickel Plated	Cable Gland	0.276 in	7 mm	M25	Silver	16.99 mm	0.669 in	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	100 °C	-40 °C
Phoenix Contact 1415175	9 mm	0.354 in	O-Ring, Seal, Strain Relief	Polyamide (PA), Nylon	Cable Gland	0.472 in	12 mm	M25	Light Gray	16.99 mm	0.669 in	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 2.99

General part information

Cable Gland Polyamide (PA), Nylon M25 Black
