X4163V8-2.7

Active

Renesas Electronics Corporation

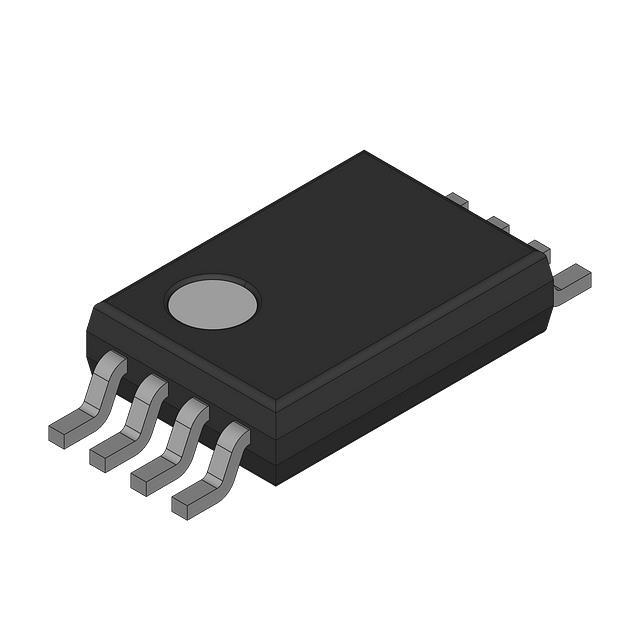

IC SUPERVISOR 1 CHANNEL 8TSSOP

Deep-Dive with AI

Search across all available documentation for this part.

X4163V8-2.7

Active

Renesas Electronics Corporation

IC SUPERVISOR 1 CHANNEL 8TSSOP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	188	$ 1.60

Description

General part information

X4163 Series

Supervisor 1 Channel 8-TSSOP

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X4163V8-2.7	X4163 Series

Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Voltages Monitored	1	1
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Output	-	Open Drain or Open Collector
Package / Case	8-TSSOP	8-DIP, 8-TSSOP, 8-SOIC
Package / Case	-	0.3 in
Package / Case	-	7.62 mm
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Package / Case [custom]	0.173 "	0.173 "
Package / Case [custom]	4.4 mm	4.4 mm
Reset	Active Low	Active Low
Reset Timeout	100 ms	100 ms
Supplier Device Package	8-TSSOP	8-DIP, 8-TSSOP, 8-SOIC
Type	Simple Reset/Power-On Reset	Simple Reset/Power-On Reset
Voltage - Threshold	2.62 V	2.62 - 4.62 V

X4163 Series

IC SUPERVISOR 1 CHANNEL 8DIP

Part	Reset Timeout	Supplier Device Package	Type	Package / Case	Package / Case	Package / Case	Number of Voltages Monitored	Voltage - Threshold	Operating Temperature [Max]	Operating Temperature [Min]	Reset	Mounting Type	Output	Package / Case [custom]	Package / Case [custom]	Package / Case [y]	Package / Case [x]
Renesas Electronics Corporation X4163PI-4.5A	100 ms	8-DIP	Simple Reset/Power-On Reset	0.3 in	8-DIP	7.62 mm	1	4.62 V	85 °C	-40 °C	Active Low	Through Hole	Open Drain or Open Collector
Renesas Electronics Corporation X4163V8-2.7	100 ms	8-TSSOP	Simple Reset/Power-On Reset		8-TSSOP		1	2.62 V	70 °C	0 °C	Active Low	Surface Mount		0.173 "	4.4 mm
Renesas Electronics Corporation X4163S8I-2.7	100 ms	8-SOIC	Simple Reset/Power-On Reset		8-SOIC		1	2.62 V	85 °C	-40 °C	Active Low	Surface Mount	Open Drain or Open Collector			3.9 mm	0.154 in
Renesas Electronics Corporation X4163S8-2.7	100 ms	8-SOIC	Simple Reset/Power-On Reset		8-SOIC		1	2.62 V	70 °C	0 °C	Active Low	Surface Mount	Open Drain or Open Collector			3.9 mm	0.154 in
Renesas Electronics Corporation X4163PI	100 ms	8-DIP	Simple Reset/Power-On Reset	0.3 in	8-DIP	7.62 mm	1		85 °C	-40 °C	Active Low	Through Hole	Open Drain or Open Collector
Renesas Electronics Corporation X4163P	100 ms	8-DIP	Simple Reset/Power-On Reset	0.3 in	8-DIP	7.62 mm	1		70 °C	0 °C	Active Low	Through Hole	Open Drain or Open Collector
Renesas Electronics Corporation X4163P-4.5A	100 ms	8-DIP	Simple Reset/Power-On Reset	0.3 in	8-DIP	7.62 mm	1	4.62 V	70 °C	0 °C	Active Low	Through Hole	Open Drain or Open Collector
Renesas Electronics Corporation X4163S8I	100 ms	8-SOIC	Simple Reset/Power-On Reset		8-SOIC		1		85 °C	-40 °C	Active Low	Surface Mount	Open Drain or Open Collector			3.9 mm	0.154 in
Renesas Electronics Corporation X4163PZ	100 ms	8-DIP	Simple Reset/Power-On Reset	0.3 in	8-DIP	7.62 mm	1		70 °C	0 °C	Active Low	Through Hole	Open Drain or Open Collector
