SRP.M04.GLL.5NZ

Active

LEMO

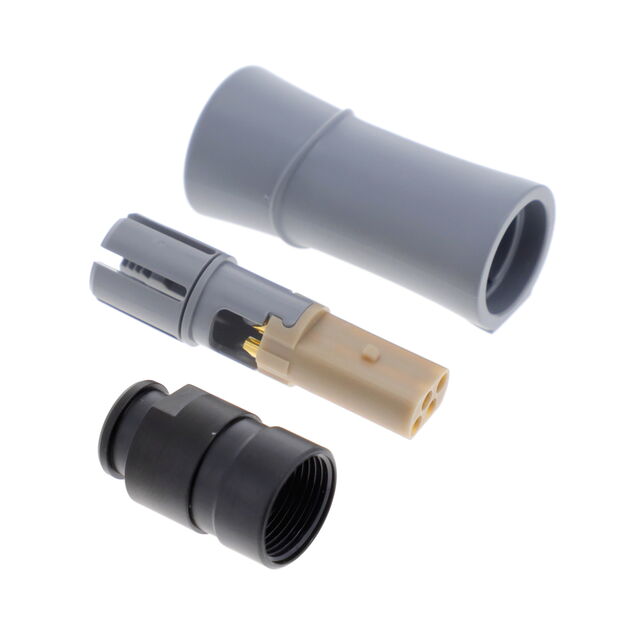

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SRP.M04.GLL.5NZ

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Sulfone
Cable Opening [Max] [custom]	0.205 in
Cable Opening [Max] [custom]	5.2 mm
Cable Opening [Min] [custom]	0.157 in
Cable Opening [Min] [custom]	4 mm
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	11.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Orientation	P
Primary Material	Plastic
Shell Material	Sulfone
Shell Size - Insert	M04
Shielding	Unshielded

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Insert Material	Features	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Orientation	Mounting Type	Applications	Contact Finish - Mating	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Connector Type	Shielding	Shell Material	Backshell Material, Plating	Primary Material
LEMO SRP.M04.GLL.5NZ	Polyetheretherketone (PEEK)	Backshell	M04	-50 °C	170 °C	Push-Pull	4	P	Free Hanging (In-Line)	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	IP50	0.157 in	0.205 in	4 mm	5.2 mm	11.5 A	Receptacle, Female Sockets	Unshielded	Sulfone	Sulfone	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
