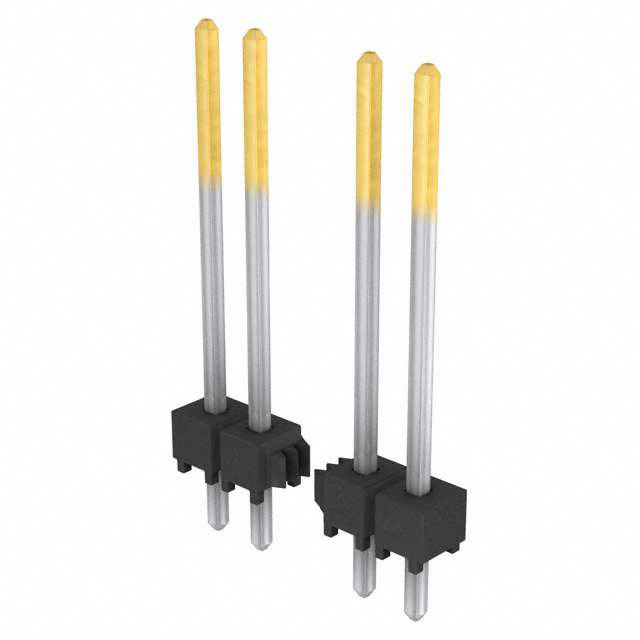

TSW-132-17-S-S
UnknownSamtec Inc.
CONN HEADER VERT 32POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
TSW-132-17-S-S
UnknownSamtec Inc.
CONN HEADER VERT 32POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSW-132-17-S-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Mating | 15.75 mm |
| Contact Length - Mating | 0.62 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.83 in |
| Overall Contact Length | 21.08 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.89 | |
| 10 | $ 4.38 | |||
| 100 | $ 3.61 | |||
| 500 | $ 2.85 | |||
| 1000 | $ 2.45 | |||
| 5000 | $ 2.23 | |||
| 10000 | $ 2.15 | |||
Description
General part information
TSW-132-17-S-S
Connector Header Through Hole 32 position 0.100" (2.54mm)
