5151108801F

Active

DIALIGHT

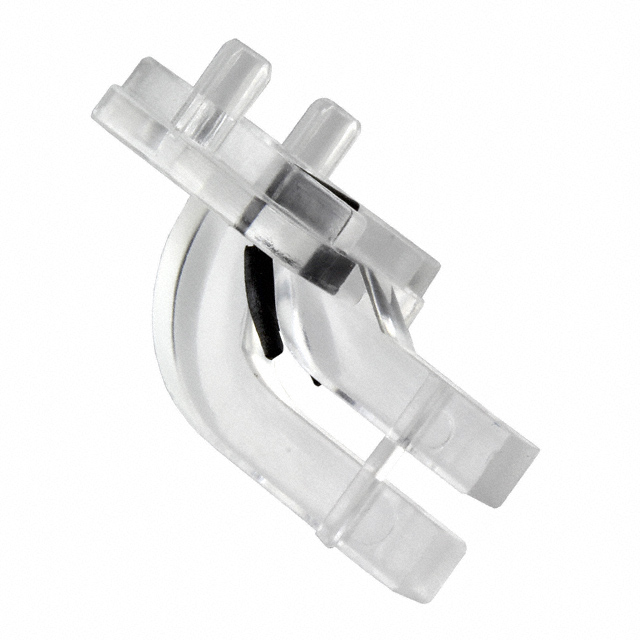

LIGHT PIPE CUSTOM 2 HIGH

Search across all available documentation for this part.

Active

DIALIGHT

LIGHT PIPE CUSTOM 2 HIGH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5151108801F	5151108 Series

Color	Clear	Clear
Configuration	2 High	2 High, 3 High
Lens Size	3.175 mm	3 - 3.175 mm
Lens Style	Square with Flat Top	Square with Flat Top
Mounting Type	Board Mount, Right Angle, Press Fit	Board Mount, Right Angle, Press Fit
Type	Rigid	Rigid

LIGHT PIPE CUSTOM 2 HIGH

Part	Color	Lens Style	Lens Size	Mounting Type	Configuration	Type
DIALIGHT 5151108801F	Clear	Square with Flat Top	3.175 mm	Board Mount, Press Fit, Right Angle	2 High	Rigid
DIALIGHT 5151108F	Clear	Square with Flat Top	3 mm	Board Mount, Press Fit, Right Angle	3 High	Rigid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 1.45

General part information

Light Pipe 2 High Clear Rigid Board Mount, Press Fit, Right Angle
