B4MH
ActiveSwitchcraft Inc.

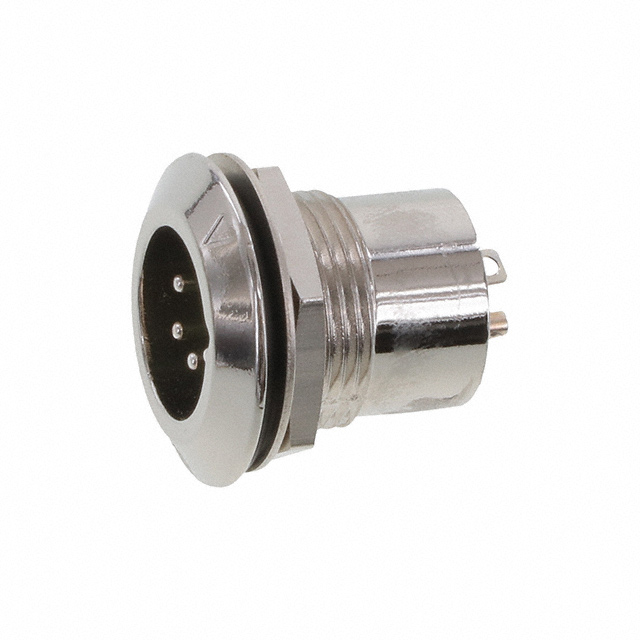

CONN RCPT MALE XLR 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B4MH
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 4P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B4MH | B4M Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Gold, Silver |
| Contact Material | Brass | Brass |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Ground | Ground |
| Ingress Protection | IP66 | IP66 |
| Insert Material | Polyester | Polyester |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Black |
| Shell Material | Zinc | Zinc |
| Shell Size - Insert | XLR | XLR |
B4M Series
CONN RCPT MALE XLR 4P SOLDER CUP
| Part | Number of Positions | Shell Material | Insert Material | Contact Material | Connector Type | Features | Mounting Feature | Applications | Ingress Protection | Fastening Type | Shell Finish | Shell Size - Insert | Color | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Contact Finish - Mating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. B4MAUH | 4 | Zinc | Polyester | Brass | Male Pins, Receptacle | Ground | Bulkhead - Rear Side Nut | Audio, Instrumentation | IP66 | Latch Lock | Nickel | XLR | Silver | 65 °C | -40 °C | Keyed | Gold | Metal |
Switchcraft Inc. B4MH | 4 | Zinc | Polyester | Brass | Male Pins, Receptacle | Ground | Bulkhead - Rear Side Nut | Audio, Instrumentation | IP66 | Latch Lock | Nickel | XLR | Silver | 65 °C | -40 °C | Keyed | Silver | Metal |
Switchcraft Inc. B4MBAUH | 4 | Zinc | Polyester | Brass | Male Pins, Receptacle | Ground | Bulkhead - Rear Side Nut | Audio, Instrumentation | IP66 | Latch Lock | Black | XLR | Black | 65 °C | -40 °C | Keyed | Gold | Metal |
Switchcraft Inc. B4MBH | 4 | Zinc | Polyester | Brass | Male Pins, Receptacle | Ground | Bulkhead - Rear Side Nut | Audio, Instrumentation | IP66 | Latch Lock | Black | XLR | Black | 65 °C | -40 °C | Keyed | Silver | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 11.68 | |
Description
General part information
B4M Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
