AB-FC02450-19700-8A1

Active

American Bright Optoelectronics Corporation

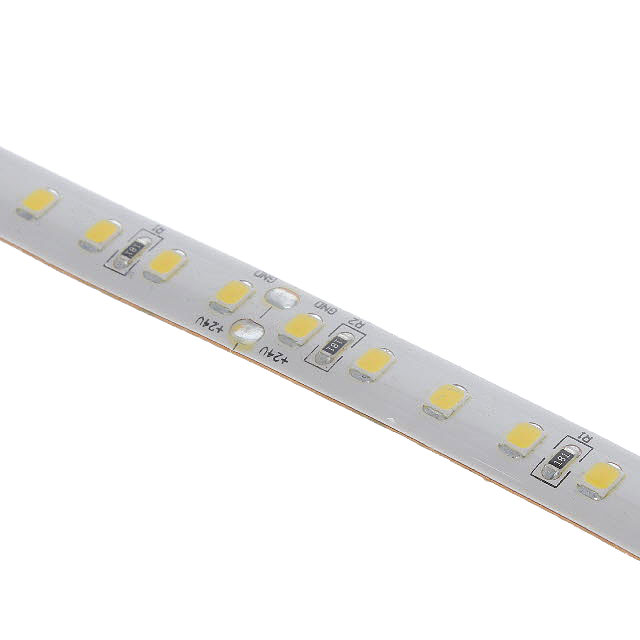

LED MOD AB-FC WH LNR STRP 5000K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FC WH LNR STRP 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FC02450-19700-8A1

CCT (K)	5000 K
Color	Cool, White
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80
Current - Test	660 mA
Features	IP65
Height [z]	2.5 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	46 lm/W
Luminous Flux @ Current/Temperature	334 lm
Size / Dimension [x]	5000 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

LED MOD AB-FC WH LNR STRP 5000K

Part	CRI (Color Rendering Index)	CCT (K)	Voltage - Forward (Vf) (Typ)	Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Color	Height [z]	Configuration	Viewing Angle	Features	Size / Dimension [x]	Current - Test	Lens Type
American Bright Optoelectronics Corporation AB-FC02450-19700-8A1	80	5000 K	24 V	LED Module	334 lm	46 lm/W	Cool, White	2.5 mm	Flexible, Linear Light Strip	120 °	IP65	5000 mm	660 mA	Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FC White, Cool Linear Light Strip, Flexible
