917728-1

Active

TE Connectivity AMP Connectors

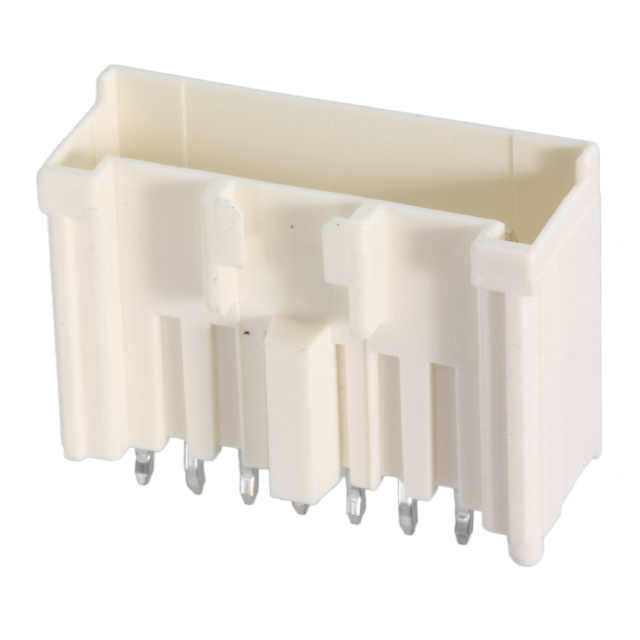

CONN HEADER VERT 8POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917728-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	15.29 mm
Insulation Height	0.602 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights [z]	19.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	15.9 mm
Overall Contact Length	0.626 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 8POS 2.5MM

Part	Applications	Contact Shape	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Type	Fastening Type	Current Rating (Amps)	Mated Stacking Heights [z]	Voltage Rating	Number of Rows	Insulation Height	Insulation Height	Features	Contact Finish - Post	Contact Length - Post	Contact Length - Post [x]	Connector Type	Style	Shrouding	Mounting Type	Material Flammability Rating	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Material	Contact Length - Mating	Contact Length - Mating
TE Connectivity AMP Connectors 917728-1	General Purpose	Square	8	15.9 mm	0.626 in	Male Pin	Latch Holder	3 A	19.2 mm	50 V	1	15.29 mm	0.602 in	Board Guide	Tin	3.2 mm	0.126 in	Header	Board to Cable/Wire	Shrouded - 4 Wall	Through Hole	UL94 V-0	Kinked Pin, Solder	All	2.5 mm	0.098 in	Natural	-30 ░C	105 ░C	Copper Alloy	Polyamide (PA66), Nylon 6/6, Glass Filled	0.185 in	4.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.098" (2.50mm)
