Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1830867 | IMCV Series |
|---|---|---|
| Color | Black | Black, Green |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | - | 3.4 mm |
| Contact Tail Length | - | 0.134 in |
| Current - IEC | 8 A | 8 A |
| Current - UL | 8 A | 8 A |
| Features | Locking Ramp | Locking Ramp |
| Header Orientation | Vertical | Vertical |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon |
| Insulation Height | 0.569 in | 0.569 - 0.571 in |
| Insulation Height | 14.45 mm | 14.45 - 14.5 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 - 12 |
| Pitch [x] | 3.5 mm | 3.5 - 3.81 mm |
| Pitch [x] | 0.138 in | 0.138 - 0.15 in |
| Positions Per Level | 2 | 2 - 12 |
| Termination Style | Solder | Solder |
| Type | - | Header, Female Sockets |
| Voltage - IEC | 320 V | 320 V |
| Voltage - UL | 300 V | 300 V |
IMCV Series

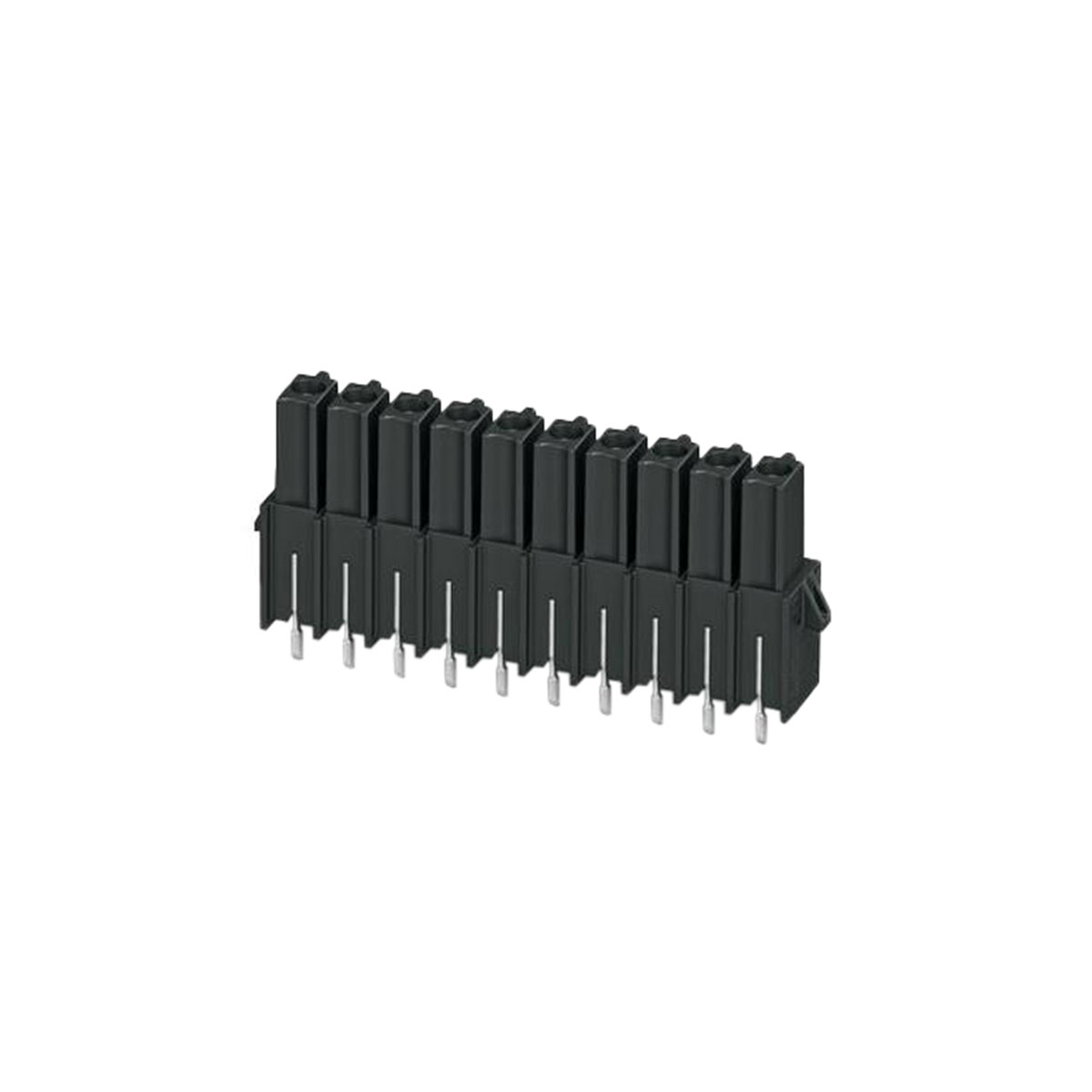

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Thru Hole Invert Hdr
| Part | Header Orientation | Material Flammability Rating | Features | Insulation Height | Insulation Height | Pitch [x] | Pitch [x] | Voltage - UL | Current - IEC | Number of Levels | Voltage - IEC | Mounting Type | Housing Material | Current - UL | Termination Style | Positions Per Level | Number of Positions | Contact Mating Finish | Color | Type | Contact Tail Length | Contact Tail Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1830867 | Vertical | UL94 V-0 | Locking Ramp | 0.569 in | 14.45 mm | 3.5 mm | 0.138 in | 300 V | 8 A | 1 | 320 V | Through Hole | Liquid Crystal Polymer (LCP) | 8 A | Solder | 2 | 2 | Tin | Black | |||
Phoenix Contact 1875519 | Vertical | UL94 V-0 | 0.571 in | 14.5 mm | 3.81 mm | 0.15 in | 300 V | 8 A | 1 | 320 V | Through Hole | Polyamide (PA), Nylon | 8 A | Solder | 11 | 11 | Tin | Green | Header, Female Sockets | 3.4 mm | 0.134 in | |
Phoenix Contact 1875522 | Vertical | UL94 V-0 | 0.571 in | 14.5 mm | 3.81 mm | 0.15 in | 300 V | 8 A | 1 | 320 V | Through Hole | Polyamide (PA), Nylon | 8 A | Solder | 12 | 12 | Tin | Green | Header, Female Sockets | 3.4 mm | 0.134 in |
