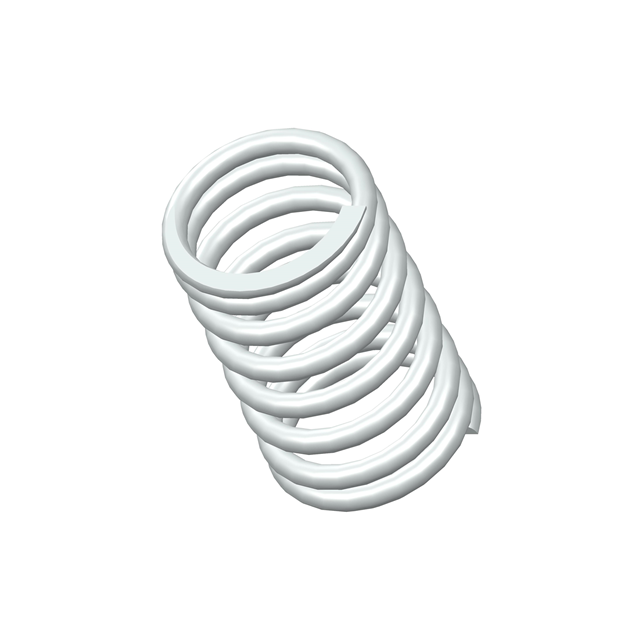

S-1196CS
ActiveCentury Spring Corp
COMP O= .906,L= 1.50,W= .105
S-1196CS
ActiveCentury Spring Corp
COMP O= .906,L= 1.50,W= .105
Description
General part information
S-1196CS
COMP O= .906,L= 1.50,W= .105
Technical Specifications
Parameters and characteristics for this part
| Specification | S-1196CS |
|---|---|
| Diameter - Inside | 0.696 in |
| Diameter - Outside | 0.906 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.5 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 49 lbs/in |
| Type | Compression |
| Wire Diameter | 0.105 in |
