22400-4-SW

Active

O.C. White Co.

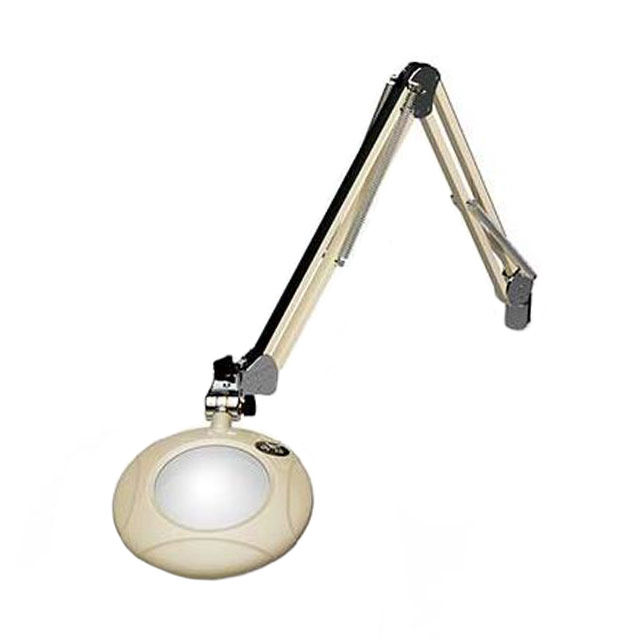

LAMP MAGNIFIER 4 DIOPTER CLAMP

Search across all available documentation for this part.

Active

O.C. White Co.

LAMP MAGNIFIER 4 DIOPTER CLAMP

Technical Specifications

Parameters and characteristics commom to parts in this series

LAMP MAGNIFIER 4 DIOPTER CLAMP

Part	Arm [x]	Arm [x]	Bulb	Voltage [Max]	Voltage [Min]	Lens Style/Size	Lens Style/Size	Lamp/Magnifier Type	Color	Cord Length	Cord Length	Cord Length	Mounting Type	Lens Style/Size [diameter]	Lens Style/Size [diameter]	Lens Style/Size
O.C. White Co. 22400-4-SW	43 in	1092.2 mm	LED, White	240 V	100 V	127 mm	4 Diopter, 5 in	Lamp, Magnifier	White	NEMA 5-15P	1.83 m	6 '	Edge Clamp
O.C. White Co. 22400-5-B	43 in	1092.2 mm	LED, White	240 V	100 V		5 Diopter	Lamp, Magnifier	Black	NEMA 5-15P	1.83 m	6 '	Edge Clamp	127 mm	5 in	2.25x
O.C. White Co. 22400-4-B	43 in	1092.2 mm	LED, White	240 V	100 V	127 mm	4 Diopter, 5 in	Lamp, Magnifier	Black	NEMA 5-15P	1.83 m	6 '	Edge Clamp
O.C. White Co. 22400-4-SB	43 in	1092.2 mm	LED, White	240 V	100 V	127 mm	4 Diopter, 5 in	Lamp, Magnifier	Blue	NEMA 5-15P	1.83 m	6 '	Edge Clamp
O.C. White Co. 22400-BR	43 in	1092.2 mm	LED, White	240 V	100 V		3 Diopter	Lamp, Magnifier	Red	NEMA 5-15P	1.83 m	6 '	Edge Clamp	127 mm	5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 375.38

General part information

Lamp, Magnifier 4 Diopter (2x), 5.00" (127.00mm) Diameter LED, White
