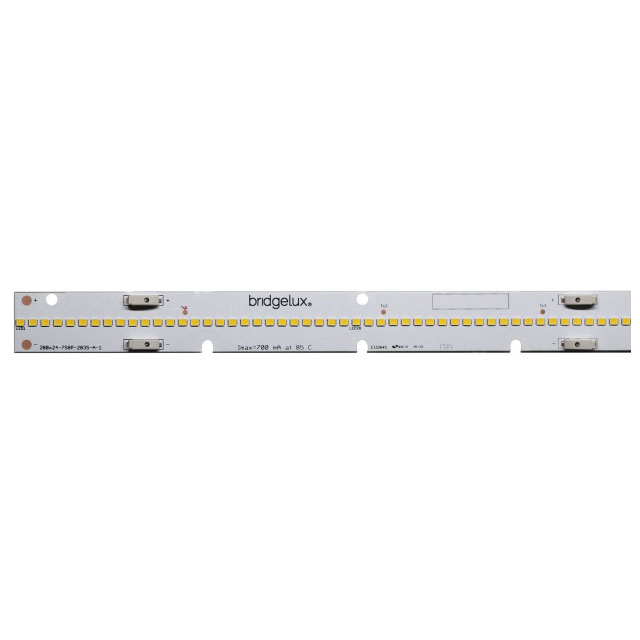

BXEB-L1120Z-35E8000-C-D3
ActiveBRIDGELUX
LED MOD EB SER WH LNR STRP 3500K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXEB-L1120Z-35E8000-C-D3
ActiveBRIDGELUX
LED MOD EB SER WH LNR STRP 3500K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXEB-L1120Z-35E8000-C-D3 | BXEB-L1120 Series |
|---|---|---|
| CCT (K) | 3500 K | 3000 - 5700 K |
| Color | White, Warm | Cool, White, Neutral, Warm |
| Configuration | Linear Light Strip | Linear Light Strip |
| CRI (Color Rendering Index) | 80 | 80 - 98 |
| Current - Max [Max] | 2.8 A | 1.4 - 2.8 A |
| Current - Test | - | 960 mA |
| Features | - | With Connector |
| Height [z] | 6.1 mm | 6.1 mm |
| Lens Type | Flat | Flat |
| Lumens/Watt @ Current - Test | 185 lm/W | 127 - 194 lm/W |
| Luminous Flux @ Current/Temperature | 9920 lm | 4780 - 10440 lm |
| Size / Dimension [x] | 1120 mm | 1120 mm |
| Size / Dimension [y] | 24 mm | 24 mm |
| Temperature - Test | - | 50 °C |
| Type | LED Module | LED Module |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 38.4 V | 38.4 - 44.2 V |
BXEB-L1120 Series
LED MOD EB SER WH LNR STRP 5700K
| Part | CCT (K) | Luminous Flux @ Current/Temperature | Lens Type | Temperature - Test | Voltage - Forward (Vf) (Typ) | Height [z] | Color | Current - Max [Max] | Lumens/Watt @ Current - Test | Configuration | Size / Dimension [x] | Size / Dimension [y] | Type | CRI (Color Rendering Index) | Viewing Angle | Features | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXEB-L1120Z-57E4000-C-A3 | 5700 K | 4920 lm | Flat | 50 °C | 44.2 V | 6.1 mm | Cool, White | 1.4 A | 159 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 80 | |||
BRIDGELUX BXEB-L1120Z-40E4000-C-B3 | 4000 K | 4920 lm | Flat | 39 V | 6.1 mm | Neutral, White | 1.4 A | 180 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 80 | 120 ° | With Connector | ||
BRIDGELUX BXEB-L1120Z-30E8000-C-D3 | 3000 K | 9920 lm | Flat | 38.4 V | 6.1 mm | Warm, White | 2.8 A | 185 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 80 | 120 ° | |||
BRIDGELUX BXEB-L1120Z-35E4000-C-A3 | 3500 K | 4820 lm | Flat | 50 °C | 44.2 V | 6.1 mm | Warm, White | 1.4 A | 156 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 80 | |||
BRIDGELUX BXEB-L1120Z-40S4000-C-C3 | 4000 K | 5380 lm | Flat | 40.6 V | 6.1 mm | Neutral, White | 1.92 A | 138 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 98 | 120 ° | 960 mA | ||
BRIDGELUX BXEB-L1120Z-40E4000-C-A3 | 4000 K | 4920 lm | Flat | 50 °C | 44.2 V | 6.1 mm | Neutral, White | 1.4 A | 159 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 80 | |||
BRIDGELUX BXEB-L1120Z-50S4000-C-C3 | 5380 lm | Flat | 40.6 V | 6.1 mm | Cool, White | 1.92 A | 138 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 98 | 120 ° | 960 mA | |||
BRIDGELUX BXEB-L1120Z-30S4000-C-C3 | 3000 K | 4940 lm | Flat | 40.6 V | 6.1 mm | Warm, White | 1.92 A | 127 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 98 | 120 ° | 960 mA | ||
BRIDGELUX BXEB-L1120Z-50E4000-C-A3 | 4920 lm | Flat | 50 °C | 44.2 V | 6.1 mm | Cool, White | 1.4 A | 159 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 80 | ||||
BRIDGELUX BXEB-L1120Z-30E4000-C-A3 | 3000 K | 4820 lm | Flat | 50 °C | 44.2 V | 6.1 mm | Warm, White | 1.4 A | 156 lm/W | Linear Light Strip | 1120 mm | 24 mm | LED Module | 80 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.02 | |
| 10 | $ 9.13 | |||
Description
General part information
BXEB-L1120 Series
LED Lighting COBs Engines Modules LED Module EB Series™ Gen 3 White, Warm Linear Light Strip
