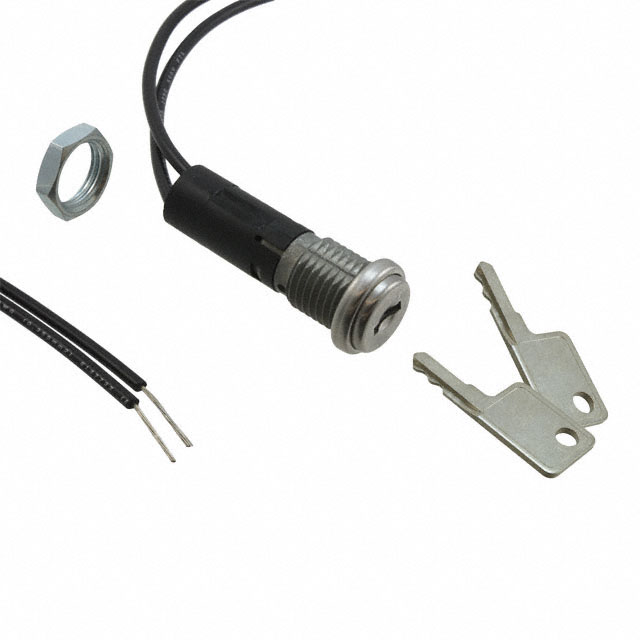

YM06132C2WCNQ

Active

LITTELFUSE

KEYLOCK SWITCHES SWITCHLOCKS 1P 4A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet switchlock +2

YM06132C2WCNQ

Active

LITTELFUSE

KEYLOCK SWITCHES SWITCHLOCKS 1P 4A

Deep-Dive with AI

DocumentsDatasheet switchlock +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YM06132C2WCNQ

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SPST
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange	27.07 mm
Electrical Life	10000 Cycles
Key Removable Positions	1 only
Number of Positions	2
Panel Cutout Dimensions [diameter]	11.99 mm
Switch Function	Off-On
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

YM Series

4 Tumbler Miniature Switchlock Keylock Switches Switchlocks 1P 4A

Part	Switch Function	Depth Behind Flange	Voltage Rating - DC	Contact Material	Panel Cutout Dimensions [diameter]	Termination Style	Circuit	Voltage Rating - AC	Contact Finish	Contact Timing	Angle of Throw	Number of Positions	Current Rating (Amps)	Key Removable Positions	Electrical Life	Actuator Type
LITTELFUSE YM06132C2WCNQ	Off-On	27.07 mm	28 V	Copper	11.99 mm	Wire Leads	SPST	125 V	Silver	Not Specified	90 °	2	4 A	1 only	10000 Cycles	Flat Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.01
		10	$ 24.53
		36	$ 23.42
		72	$ 22.18
		108	$ 21.36
		252	$ 19.98
		504	$ 17.05
Sager	N/A	36	$ 22.74

Description

General part information

YM Series

Designers of cable TV connectors, automotive accessories and computers turn to C&K’s YM series of 4 tumbler miniature switchlocks to meet their security needs. As a 4 tumbler lock with positive detent, the YM series feature snap-together assemblies for pre-wiring the switch and are available with wire lead terminations.
