1217043-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT/TAB 10-14AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217043-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT/TAB 10-14AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217043-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female, Male |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 5.08 mm |
| Insulation Diameter [Max] | 0.2 " |
| Insulation Diameter [Min] | 0.15 " |
| Insulation Diameter [Min] | 3.81 mm |
| Length - Overall [x] | 0.78 in |
| Length - Overall [x] | 19.81 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 7.75 mm |
| Tab Length | 0.305 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Stacked |
| Termination | Crimp |
| Wire Gauge [Max] | 14 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.21 | |||
| Tape & Reel (TR) | 2000 | $ 0.21 | ||
1217043 Series
CONN QC RCPT/TAB 10-14AWG 0.250
| Part | Length - Overall [x] | Length - Overall [x] | Mounting Type | Gender | Terminal Type | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Contact Material | Termination | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Contact Finish | Tab Thickness | Tab Thickness | Insulation | Tab Length | Tab Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217043-1 | 0.78 in | 19.81 mm | Free Hanging (In-Line) | Female, Male | Stacked | 0.15 " | 5.08 mm | 3.81 mm | 0.2 " | Brass | Crimp | 10 AWG | 14 AWG | 6.35 mm | 0.25 in | Tin | 0.032 in | 0.81 mm | Non-Insulated | 7.75 mm | 0.305 in |
Description
General part information
1217043 Series

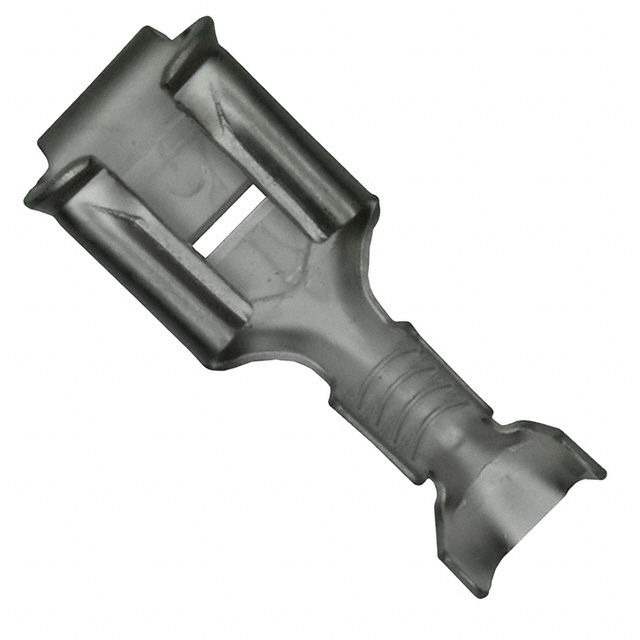

0.250" (6.35mm) Quick Connect Female and Male 10-14 AWG Crimp Connector Non-Insulated
