Description
General part information

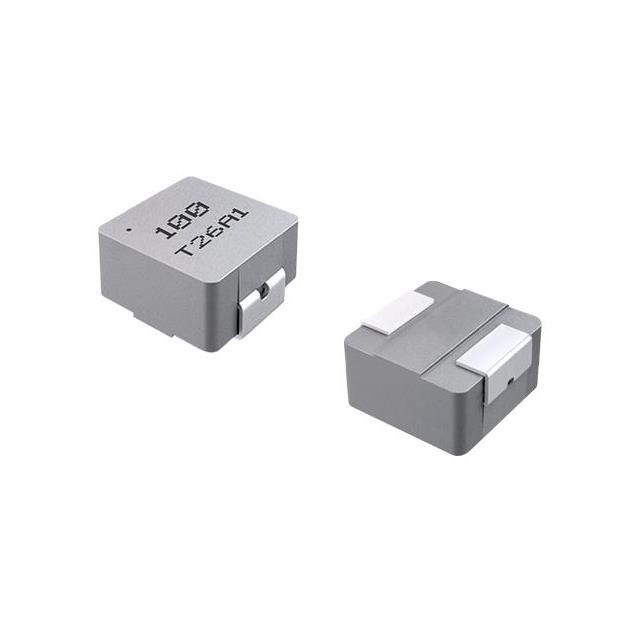

CSHB0540R-8R2M
8.2 µH Shielded Molded Inductor 4.5 A 68.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CSHB0540R-8R2M |
|---|---|
| Current - Saturation (Isat) | 5 A |
| Current Rating | 4.5 A |
| DC Resistance (DCR) (Max) | 68.5 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.228 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 20 % |
| Type | Molded |
