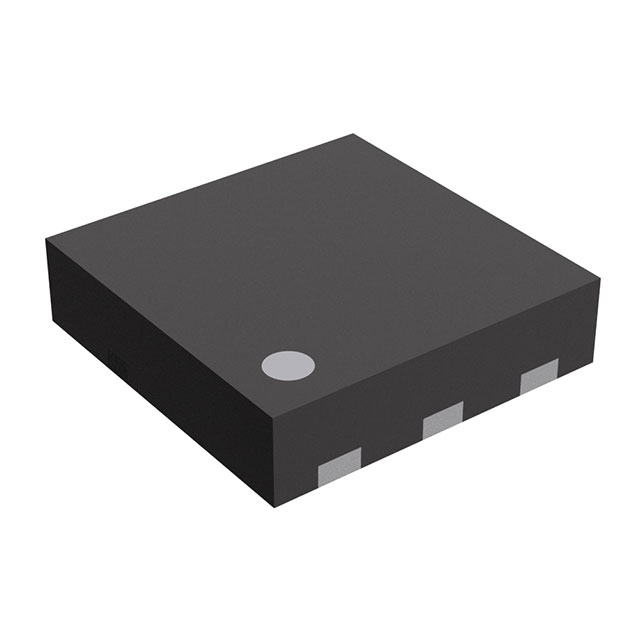

NJG1175KG1-TE3

Active

Nisshinbo Micro Devices Inc

IC AMP 802.11AC 5.925GHZ 6DFN

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC AMP 802.11AC 5.925GHZ 6DFN

Technical Specifications

Parameters and characteristics for this part

IC AMP 802.11AC 5.925GHZ 6DFN

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Mounting Type	Current - Supply	Supplier Device Package	Frequency [Max]	Frequency [Min]	RF Type	Gain	P1dB	Noise Figure
Nisshinbo Micro Devices Inc NJG1175KG1-TE3	2.5 V	5.5 V	6-XFDFN Exposed Pad	Surface Mount	13 mA	6-DFN (1.6x1.6)	5.925 GHz	4.9 GHz	802.11a/n/ac/ax, ISM, LTE, WLAN	16 dB	9 dBm	0.95 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC 802.11a/n/ac/ax, ISM, LTE, WLAN 4.9GHz ~ 5.925GHz 6-DFN (1.6x1.6)

Technical documentation and resources
