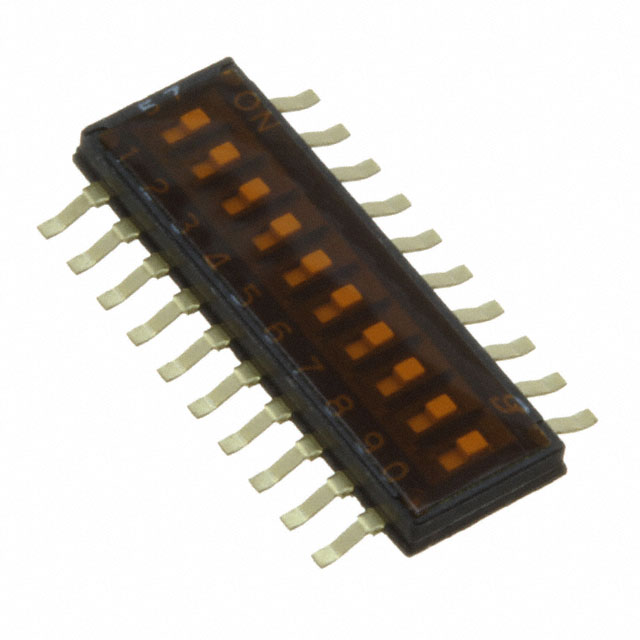

97R10ST
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
97R10ST
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 97R10ST | 97R10 Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Flush, Recessed |
| Actuator Type | Slide (Standard) | Slide (Standard) |
| Body Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Circuit | SPST | SPST |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 25 mA | 25 mA |
| Features | Tape Seal | Tape Seal |
| Height Above Board [z] | 0.061 " | 0.061 " |
| Height Above Board [z] | 1.55 mm | 1.55 mm |
| Length [x] | 13.93 mm | 13.93 mm |
| Length [x] | 0.548 in | 0.548 in |
| Mechanical Life | 1000 Cycles | 1000 Cycles |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Termination Style | Gull Wing | Gull Wing |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | True | True, False |
97R10 Series
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Height Above Board [z] | Height Above Board [z] | Pitch [x] | Pitch [x] | Contact Finish | Voltage Rating | Mechanical Life | Body Material | Contact Material | Actuator Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Washable | Features | Actuator Level | Number of Positions | Termination Style | Mounting Type | Current Rating (Amps) | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 97R10ST | 0.061 " | 1.55 mm | 0.05 in | 1.27 mm | Gold | 24 VDC | 1000 Cycles | Nylon, Polyamide (PA) | Copper Alloy | Slide (Standard) | SPST | 85 °C | -40 °C | Tape Seal | Flush, Recessed | 10 | Gull Wing | Surface Mount | 25 mA | 13.93 mm | 0.548 in | |
Grayhill Inc. 97R10T | 0.061 " | 1.55 mm | 0.05 in | 1.27 mm | Gold | 24 VDC | 1000 Cycles | Nylon, Polyamide (PA) | Copper Alloy | Slide (Standard) | SPST | 85 °C | -40 °C | Flush, Recessed | 10 | Gull Wing | Surface Mount | 25 mA | 13.93 mm | 0.548 in | ||
Grayhill Inc. 97R10SRT | 0.061 " | 1.55 mm | 0.05 in | 1.27 mm | Gold | 24 VDC | 1000 Cycles | Nylon, Polyamide (PA) | Copper Alloy | Slide (Standard) | SPST | 85 °C | -40 °C | Tape Seal | Flush, Recessed | 10 | Gull Wing | Surface Mount | 25 mA | 13.93 mm | 0.548 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.02 | |
| 10 | $ 5.49 | |||
| 25 | $ 5.00 | |||
| 132 | $ 4.32 | |||
| 264 | $ 3.92 | |||
| 528 | $ 3.64 | |||
| 1056 | $ 3.37 | |||
| 2508 | $ 3.24 | |||
Description
General part information
97R10 Series
Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
