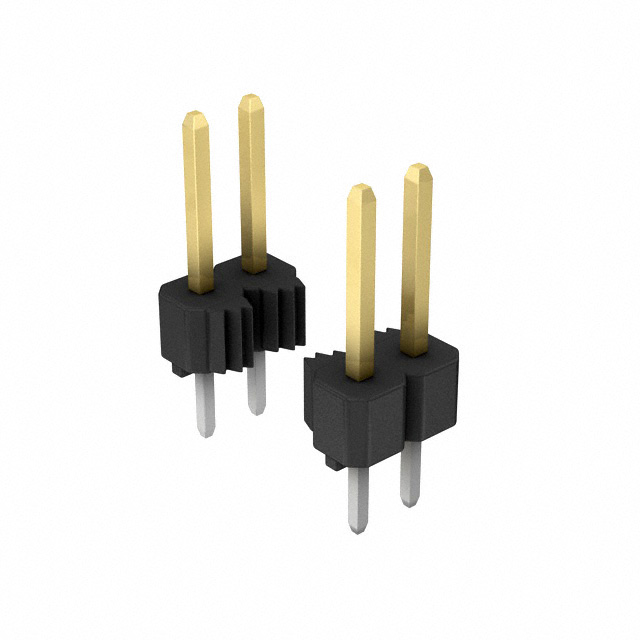

A1-10PA-2.54DSA(71)

Active

Hirose Electric Co Ltd

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A1-xPA-2.54DSA(71) Spec

A1-10PA-2.54DSA(71)

Active

Hirose Electric Co Ltd

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet A1-xPA-2.54DSA(71) Spec

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.02
		10	$ 0.88
		25	$ 0.85
		40	$ 0.83
		170	$ 0.79
		340	$ 0.71
		510	$ 0.66

Description

General part information

A1-10PA Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

A1-xPA-2.54DSA(71) Spec

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1-10PA-2.54DSA(71)	A1-10PA Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.203 Ám	0.203 Ám
Contact Finish Thickness - Mating	8 Áin	8 Áin
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	6 mm	6 mm
Contact Length - Mating	0.236 in	0.236 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 - 0.236 in
Insulation Height	2.54 mm	2.54 - 6 mm
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Positions Loaded	-	9
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	11.54 mm	11.54 mm
Overall Contact Length	0.454 in	0.454 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	200 V	200 V

A1-10PA Series

CONN HEADER R/A 10POS 2.54MM

Part	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Post	Voltage Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions Loaded	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Shrouding	Number of Rows	Style	Connector Type	Overall Contact Length	Overall Contact Length	Number of Positions Loaded
Hirose Electric Co Ltd A1-10PA-2.54DS(71)	Polybutylene Terephthalate (PBT)	85 °C	-55 °C	Solder	0.203 Ám	8 Áin	Through Hole, Right Angle	Gold	6 mm	0.236 in	2.54 mm	0.1 in	Brass	3 A	10	0.118 in	3 mm	Black	6 mm	0.236 in	Tin	200 V	Square	0.1 in	2.54 mm	Male Pin	All	Push-Pull	2 çm	78.7 çin	UL94 V-0	Unshrouded	2	Board to Board, Cable	Header
Hirose Electric Co Ltd A1-10PA-2.54DSA(71)	Polybutylene Terephthalate (PBT)	85 °C	-55 °C	Solder	0.203 Ám	8 Áin	Through Hole	Gold	6 mm	0.236 in	2.54 mm	0.1 in	Brass	3 A	10	0.118 in	3 mm	Black	2.54 mm	0.1 in	Tin	200 V	Square	0.1 in	2.54 mm	Male Pin	All	Push-Pull	2 çm	78.7 çin	UL94 V-0	Unshrouded	2	Board to Board, Cable	Header	11.54 mm	0.454 in
Hirose Electric Co Ltd A1-10PA-2.54DSA(81)	Polybutylene Terephthalate (PBT)	85 °C	-55 °C	Solder	0.203 Ám	8 Áin	Through Hole	Gold	6 mm	0.236 in	2.54 mm	0.1 in	Brass	3 A	10	0.118 in	3 mm	Black	2.54 mm	0.1 in	Tin	200 V	Square	0.1 in	2.54 mm	Male Pin		Push-Pull	2 çm	78.7 çin	UL94 V-0	Unshrouded	2	Board to Board, Cable	Header	11.54 mm	0.454 in	9
