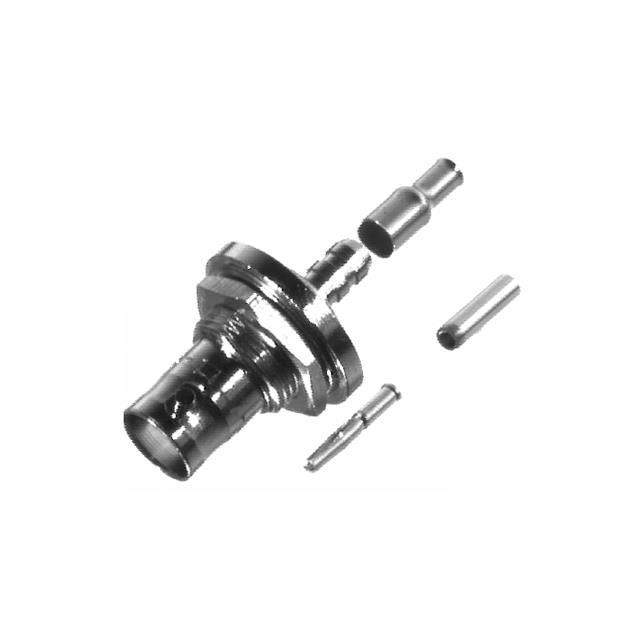

RFB-1117-BT-03

Active

RF Industries

BNC FEMALE BH CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC FEMALE BH CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFB-1117-BT-03	RFB-1117 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Phosphor Bronze	Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.2 dB
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

BNC FEMALE BH CRIMP; 50 OHMS

Part	Shield Termination	Center Contact Material	Body Material	Housing Color	Mounting Feature	Fastening Type	Frequency - Max [Max]	Number of Ports	Contact Termination	Body Finish	Impedance	Connector Style	Center Contact Plating	Dielectric Material	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss
RF Industries RFB-1117-BT-03	Crimp	Phosphor Bronze	Brass	Silver	Bulkhead - Front Side Nut	Bayonet Lock	4 GHz	1	Crimp	Nickel	50 Ohms	BNC	Gold	Polytetrafluoroethylene (PTFE)	500 V	Female Socket, Jack	-65 ░C	85 °C
RF Industries RFB-1117-BT	Crimp	Brass	Brass	Silver	Bulkhead - Front Side Nut	Bayonet Lock	4 GHz	1	Crimp	Nickel	50 Ohms	BNC	Gold	Polytetrafluoroethylene (PTFE)	500 V	Female Socket, Jack			0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
