629-M50-640-WT5

Active

EDAC Inc.

629M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

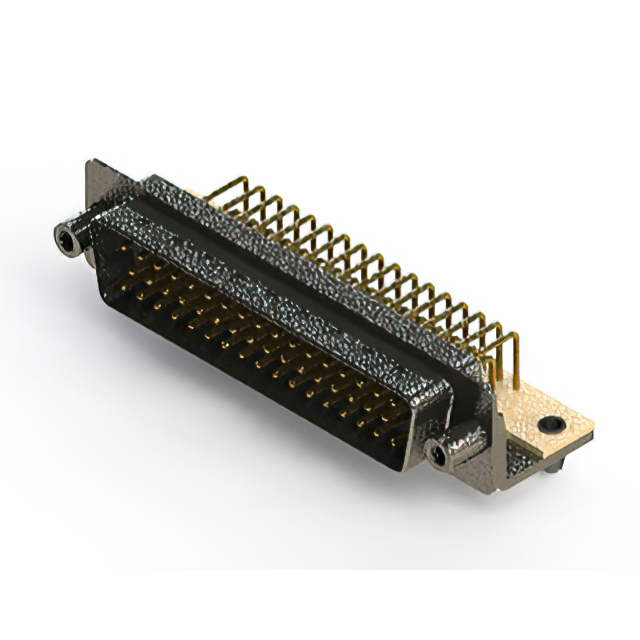

629-M50-640-WT5

Active

EDAC Inc.

629M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-M50-640-WT5

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder

629-M50 Series

Part	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Features	Current Rating (Amps)	Connector Type	Number of Positions	Flange Feature	Material Flammability Rating	Termination	Backset Spacing	Backset Spacing	Contact Material	Shell Size, Connector Layout	Contact Finish	Mounting Type	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 629-M50-340-BT5	Combo D-Sub	15 µin	0.38 µm	Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	4-40	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle
EDAC Inc. 629-M50-340-GT4	Combo D-Sub	15 µin	0.38 µm	Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	4-40	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle
EDAC Inc. 629-M50-640-BN3	Combo D-Sub	30 Áin	0.76 Ám	Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	Housing/Shell (4-40)	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle	Nickel Plated Steel
EDAC Inc. 629-M50-240-GN4	Combo D-Sub			Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	4-40	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle	Nickel Plated Steel	Flash
EDAC Inc. 629-M50-240-LT3	Combo D-Sub			Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	Housing/Shell (4-40)	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle		Flash
EDAC Inc. 629-M50-340-LT1	Combo D-Sub	15 µin	0.38 µm	Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Grounding Indents Shielded	5 A	Male Pins Plug	50	Housing/Shell (Unthreaded)	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle
EDAC Inc. 629-M50-240-GN3	Combo D-Sub			Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	Housing/Shell (4-40)	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle	Nickel Plated Steel	Flash
EDAC Inc. 629-M50-640-WT6	Combo D-Sub	30 Áin	0.76 Ám	Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	4-40 Board Side	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle
EDAC Inc. 629-M50-640-WT5	Combo D-Sub	30 Áin	0.76 Ám	Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	4-40	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle
EDAC Inc. 629-M50-640-BT5	Combo D-Sub	30 Áin	0.76 Ám	Black	3	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	Male Pins Plug	50	4-40	UL94 V-0	Solder	9.4 mm	0.37 in	Copper Alloy	5	Gold	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 25.54

Description

General part information

629-M50 Series

50 Position D-Sub, Combo Plug, Male Pins Connector
