Description
General part information

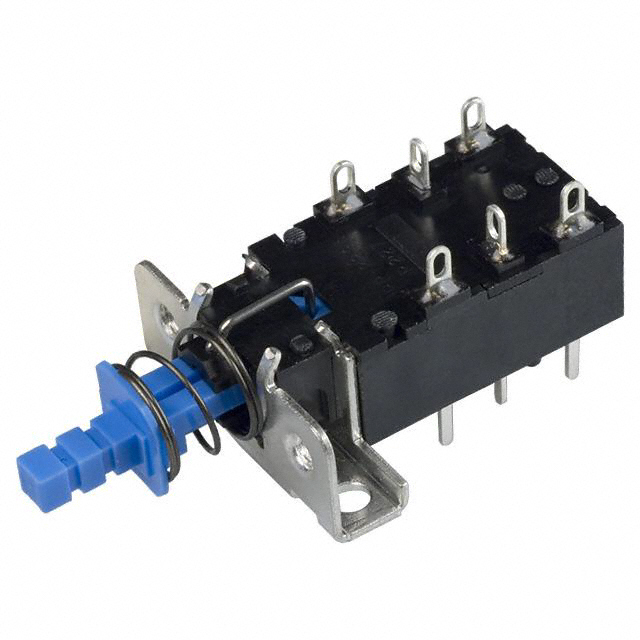

P227EE2B20A
Pushbutton Switch DPDT Standard Panel Mount, Right Angle, Rear
Technical Specifications
Parameters and characteristics for this part
| Specification | P227EE2B20A |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Color - Actuator/Cap | Blue |
| Current Rating | 7 A |
| Electrical Life (Cycles) | 6000 Cycles |
| Mounting Type | Rear, Right Angle, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 125 V |
