D0808-42

Active

Harwin Inc.

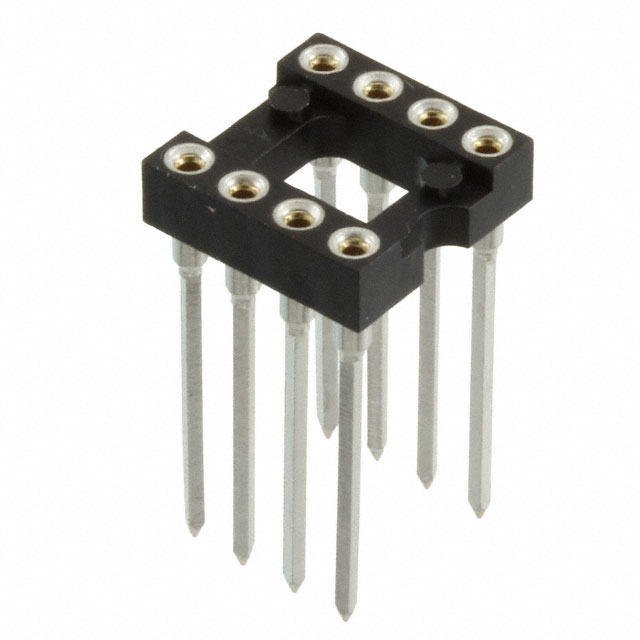

IC & COMPONENT SOCKET, 8 CONTACTS, DIP SOCKET, 2.54 MM, D08 SERIES, 7.62 MM, BERYLLIUM COPPER

Search across all available documentation for this part.

Active

Harwin Inc.

IC & COMPONENT SOCKET, 8 CONTACTS, DIP SOCKET, 2.54 MM, D08 SERIES, 7.62 MM, BERYLLIUM COPPER

Technical Specifications

Parameters and characteristics for this part

Specification	D0808-42

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	196.9 µin
Contact Finish Thickness - Post	5 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Wire Wrap
Termination Post Length [x]	0.51 in
Termination Post Length [x]	12.95 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

IC & COMPONENT SOCKET, 8 CONTACTS, DIP SOCKET, 2.54 MM, D08 SERIES, 7.62 MM, BERYLLIUM COPPER

Part	Contact Resistance	Contact Finish - Mating	Contact Finish - Post	Termination	Housing Material	Material Flammability Rating	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination Post Length [x]	Termination Post Length [x]	Contact Material - Mating	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Type	Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material - Post [custom]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
Harwin Inc. D0808-42	10 mOhm	Gold	Tin	Wire Wrap	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	UL94 V-0	2.54 mm	0.1 in	196.9 µin	5 µm	0.51 in	12.95 mm	Beryllium Copper	8	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	-55 °C	125 °C	Through Hole	Brass	1 A	10 çin	0.25 çm	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
