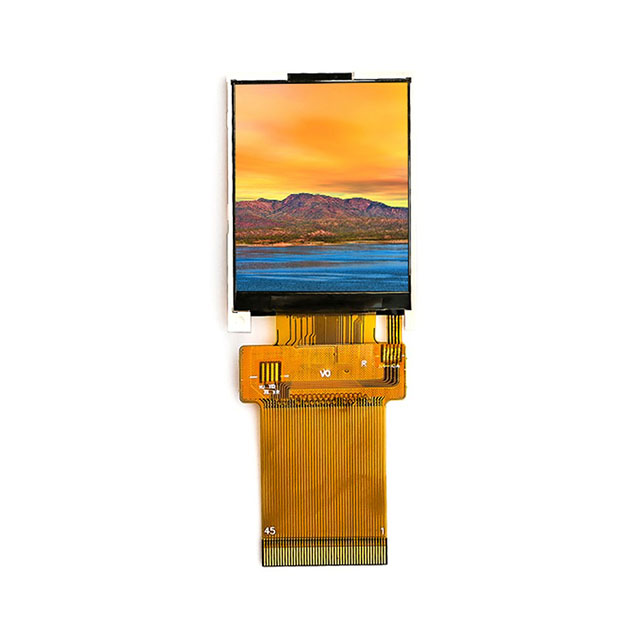

E17RG11216LW6M300-N
ActiveFocus LCDs
1.7" TFT PARALLEL, RGB, SPI
E17RG11216LW6M300-N
ActiveFocus LCDs
1.7" TFT PARALLEL, RGB, SPI
Description
General part information
E17RG11216LW6M300-N
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 18-Bit (RGB), SPI 1.77" (44.96mm) 128 x 160
Technical Specifications
Parameters and characteristics for this part
| Specification | E17RG11216LW6M300-N |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ILI9163 |
| Diagonal Screen Size | 1.77 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 160 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Parallel, SPI |
| Interface Data Width | 18 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 35.04 mm |
| Viewing Area Width | 28.02 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
