2071576-2
ActiveTE Connectivity AMP Connectors

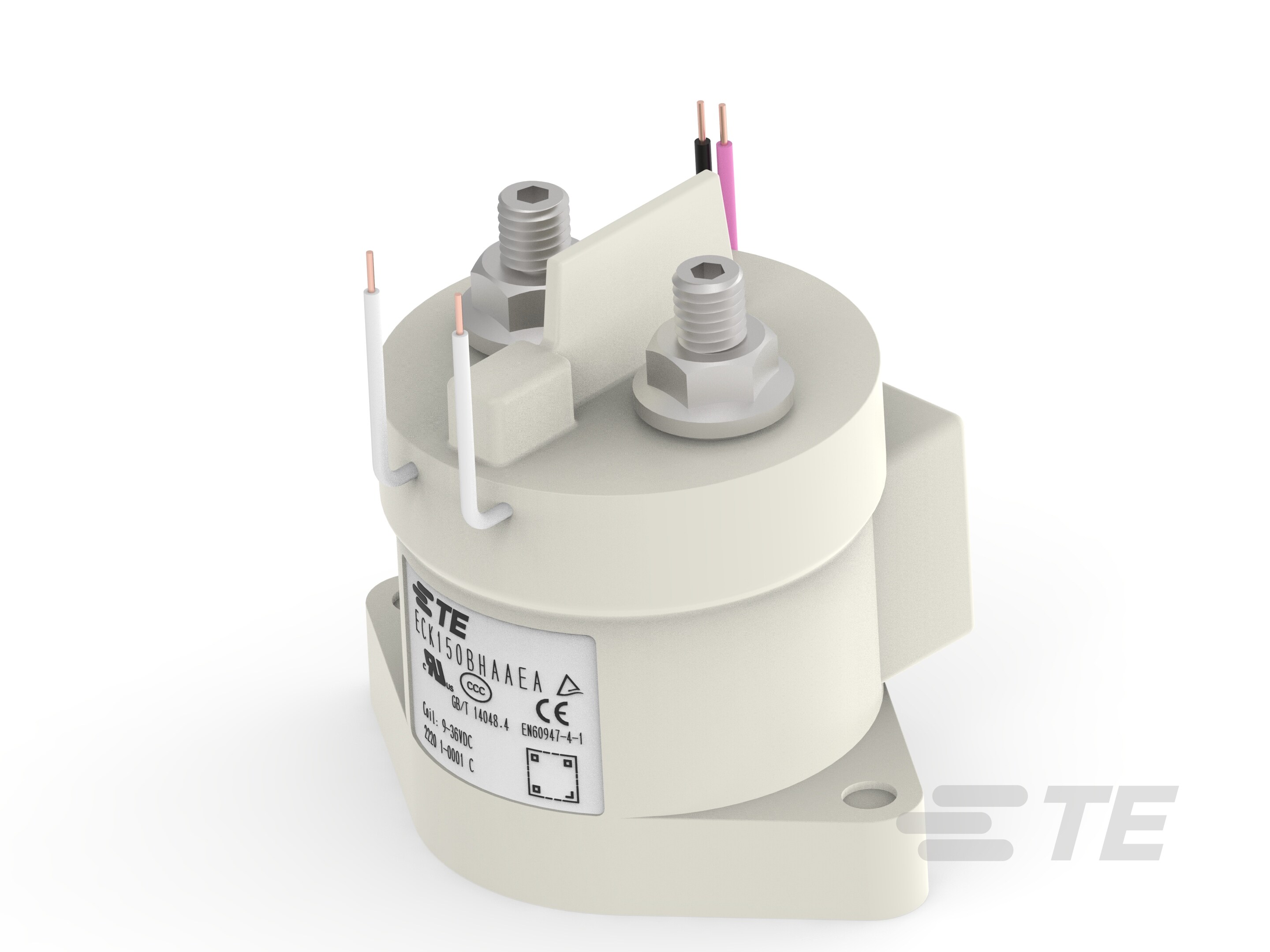

CONTACTOR, SPST-NO-DM, 200A, 36V, FLANGE ROHS COMPLIANT: YES
2071576-2
ActiveTE Connectivity AMP Connectors
CONTACTOR, SPST-NO-DM, 200A, 36V, FLANGE ROHS COMPLIANT: YES
Description
General part information
2071576-2
General Purpose Contactor, DC, 1 Form X SPST-NO-DM, 200 A Contact Rating, 36 VDC Coil Voltage, 1.7 W Coil Power, Panel Mount, ECK150B Series
Technical Specifications
Parameters and characteristics for this part
| Specification | 2071576-2 |
|---|---|
| Coil Voltage (Max) | 36 VDC |
| Coil Voltage (Min) | 9 VDC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Rating (Current) | 150 A |
| Features | Auxiliary Contacts, Hermetically, Sealed, Economizer |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 3 VDC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Switching Voltage DC (Max) | 1000 VDC |
| Termination Style | Wire Leads, Stud |
