4P MATE-AX, HDR ASSY REV.,90 DEG,COD F-1-2304168-6

1-2304168-6

Active
TE Connectivity AMP Connectors

4P MATE-AX, HDR ASSY REV.,90 DEG,COD F

Find alt
4P MATE-AX, HDR ASSY REV.,90 DEG,COD F-1-2304168-6

1-2304168-6

Active
TE Connectivity AMP Connectors

4P MATE-AX, HDR ASSY REV.,90 DEG,COD F

Find alt

Description

General part information

1-2304168-6

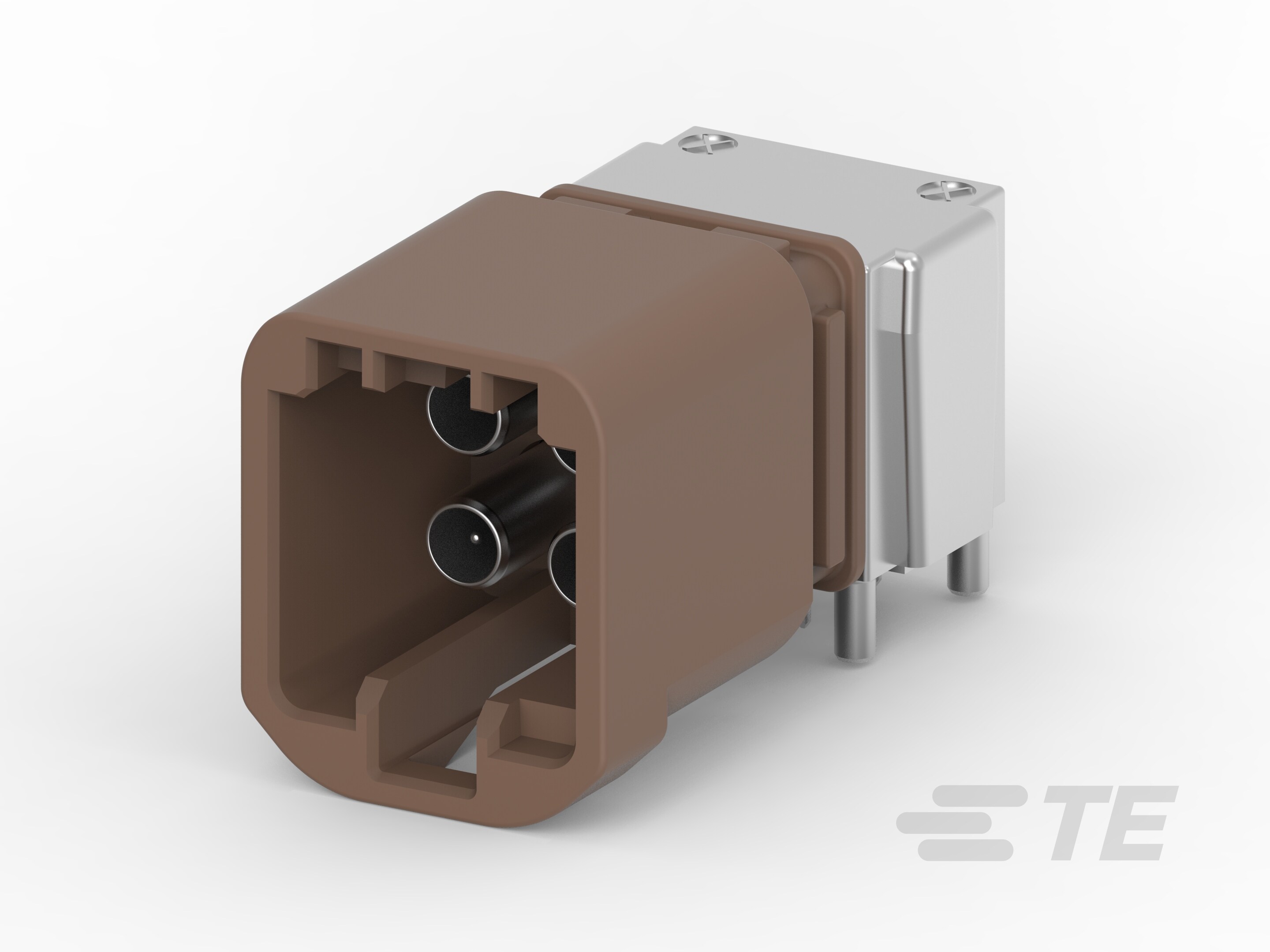

Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, A Code, 4 mm [.157 in] Centerline, Signal, MATE-AX, Data Connectivity Headers

Technical Specifications

Parameters and characteristics for this part

Specification1-2304168-6
Center Contact MaterialPhosphor Bronze
Connector StyleFakra, Quadraxial, HSD®
Connector TypeMale Pin, Plug
Contact TerminationSolder
Fastening TypeLatch Lock
FeaturesCode F
Frequency - Max9 GHz
Housing ColorBrown
Impedance50 Ohm
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Shield TerminationSolder
