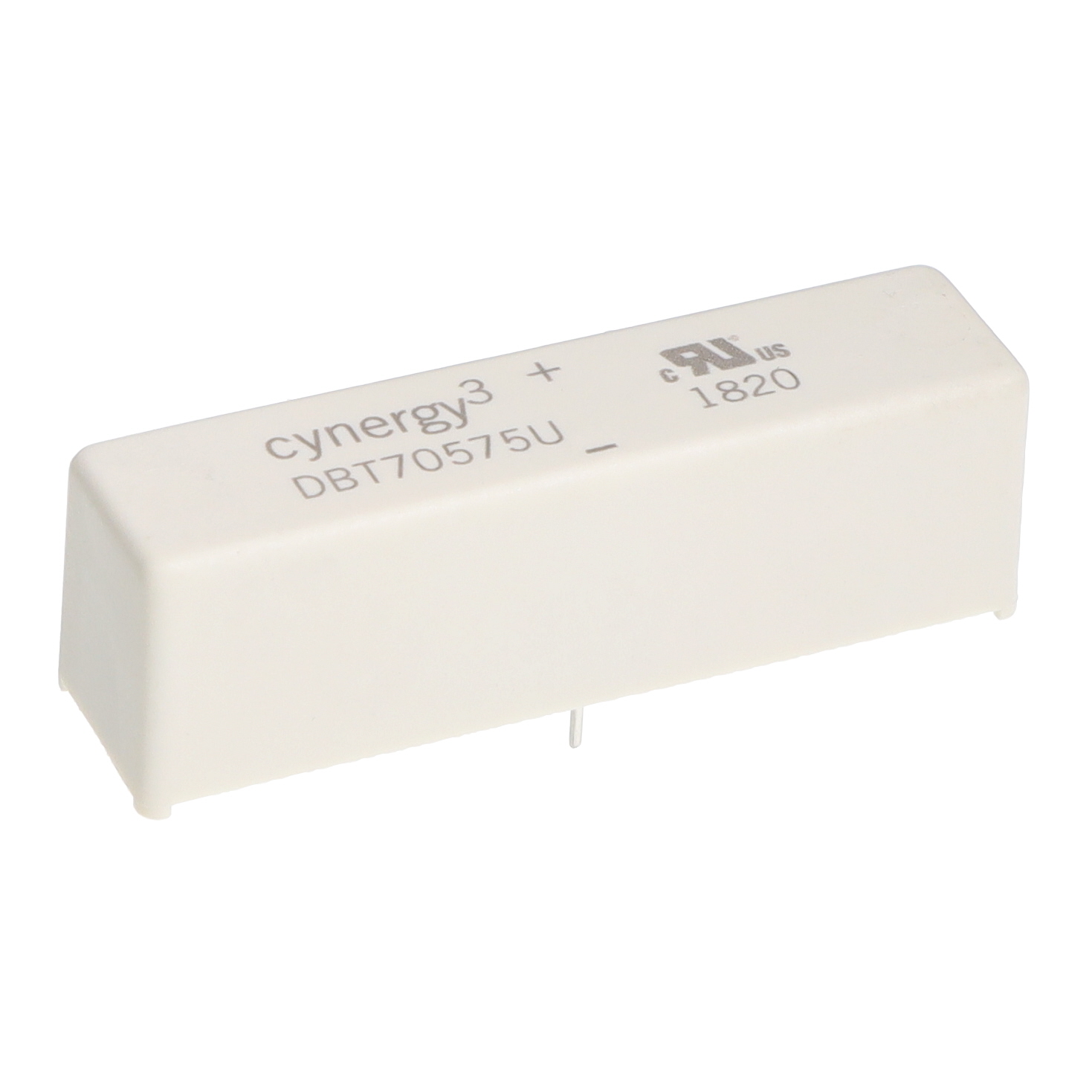

Specification	DBT70575U

Coil Current	132 mA
Coil Type	Non Latching
Coil Voltage	5 V
Contact Form	SPST-NC
Contact Material	Tungsten (W)
Contact Rating (Current)	2 A
Form B Count	1
Mounting Type	Through Hole
Must Operate Voltage	3.7 VDC
Must Release Voltage	0.5 VDC
Operate Time	2 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Release Time	3 ms
Switching Voltage AC (Max)	5000 VAC
Switching Voltage DC (Max)	5000 VDC
Termination Style	PC Pin

DA(UL) Series

...

Part	Coil Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Termination Style	Coil Current	Must Operate Voltage	Form B Count	Contact Form	Coil Voltage	Coil Type	Operate Time	Contact Material	Contact Rating (Current)	Switching Voltage DC (Max)	Switching Voltage AC (Max)	Release Time	Must Release Voltage	Form A Count	Quick Connect Size (0.250")
Sensata-Crydom DBR70505FU	38 Ohms	70 °C	-20 °C	Through Hole	PC Pin Wire Leads	132 mA	3.7 VDC	1	SPST-NC	5 V	Non Latching	2 ms	Rhodium (Rh)	3 A	1000 VDC	1000 VAC	3 ms	0.5 VDC
Sensata-Crydom DAR70575FU		70 °C	-20 °C	Through Hole	PC Pin Wire Leads	179 mA	3.7 VDC		SPST-NO	5 V	Non Latching	3 ms	Rhodium (Rh)	3 A	1000 VDC	1000 VAC	2 ms	0.5 VDC	1
Sensata-Crydom DAT72475SU		70 °C	-20 °C	Chassis Mount	Quick Connect	30.8 mA	20 VDC		SPST-NO	24 VDC	Non Latching	3 ms	Tungsten (W)	2 A	5000 VDC	5000 VAC	2 ms	4 VDC	1	0.25 in
Sensata-Crydom DBR70575SU		70 °C	-20 °C	Chassis Mount	Quick Connect	132 mA	3.7 VDC	1	SPST-NC	5 V	Non Latching	2 ms	Rhodium (Rh)	3 A	1000 VDC	1000 VAC	3 ms	0.5 VDC		0.25 in
Sensata-Crydom DBR71205TU		70 °C	-20 °C	Through Hole	PC Pin Solder Turret	50 mA	9 VDC	1	SPST-NC	12 VAC	Non Latching	2 ms	Rhodium (Rh)	3 A	1000 VDC	1000 VAC	3 ms	1.25 VDC
Sensata-Crydom DAR70505PU	28 Ohms	70 °C	-20 °C	Chassis Mount	Solder Turret	179 mA	3.7 VDC		SPST-NO	5 V	Non Latching	3 ms	Rhodium (Rh)	3 A	1000 VDC	1000 VAC	2 ms	0.5 VDC	1
Sensata-Crydom DBR70510SU		70 °C	-20 °C	Chassis Mount	Quick Connect	131.6 mA	3.7 VDC	1	SPST-NC	5 V	Non Latching	2 ms	Rhodium (Rh)	3 A	1000 VDC	1000 VAC	3 ms	0.5 VDC		0.25 in
Sensata-Crydom DBR72410SU		70 °C	-20 °C	Chassis Mount	Quick Connect	25.9 mA	20 VDC	1	SPST-NC	24 VDC	Non Latching	2 ms	Rhodium (Rh)	3 A	1000 VDC	1000 VAC	3 ms	4 VDC		0.25 in
Sensata-Crydom DAT71205U	150 Ohms	70 °C	-20 °C	Through Hole	PC Pin	80 mA	9 VDC		SPST-NO	12 VAC	Non Latching	3 ms	Tungsten (W)	2 A	3500 VDC	3500 VAC	2 ms	1.25 VDC	1
Sensata-Crydom DAT70510TU		70 °C	-20 °C	Through Hole	PC Pin Solder Turret	179 mA	3.7 VDC		SPST-NO	5 V	Non Latching	3 ms	Tungsten (W)	2 A	7000 VDC	7000 VAC	2 ms	0.5 VDC	1
