CIB24XR

CIB24XR

Obsolete
Pasternack

ADAPTOR GPIB REVERSE EXT M/F

Find alt
CIB24XR

CIB24XR

Obsolete
Pasternack

ADAPTOR GPIB REVERSE EXT M/F

Find alt

Description

General part information

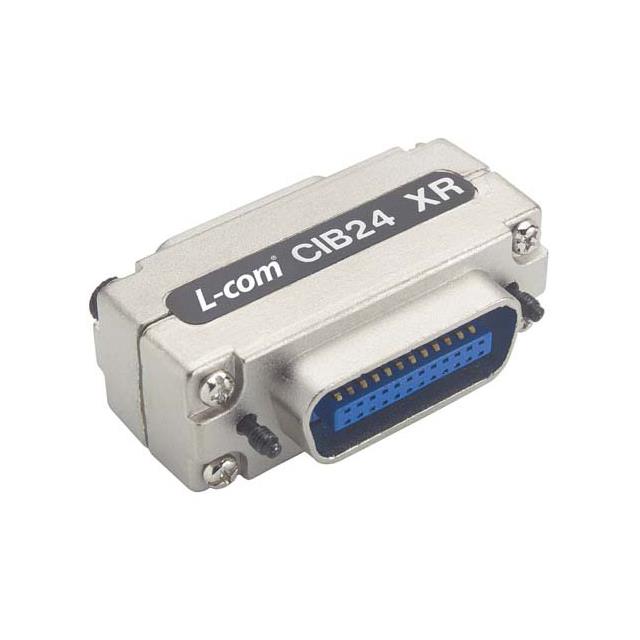

CIB24XR

Adapter Connector D-Sub, 24 Pin Female To D-Sub, 24 Pin Male Free Hanging (In-Line)

Technical Specifications

Parameters and characteristics for this part

SpecificationCIB24XR
Connector StyleConnector Saver
Contact FinishGold
Contact Finish Thickness30 µin
Convert From (Adapter End) Pin Count24
Convert From (Adapter End) Pin GenderMale
Convert From (Adapter End) TypeD-Sub
Convert To (Adapter End)Female, D-Sub, Pin Female
Convert To (Adapter End) Pin Count24 pins
Current Rating1 A
Housing ColorBlue
IncludesJack Screws, Connector
Includes Total Count3 pcs
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Rows2
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Voltage Rating200 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
