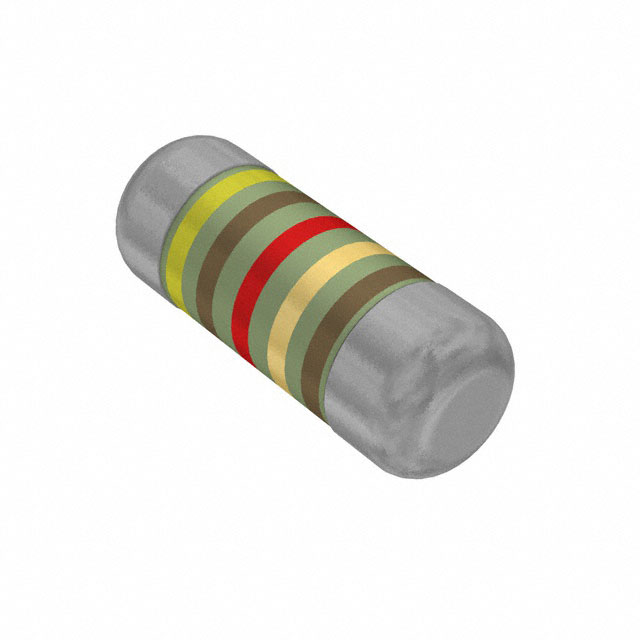

SMM02040C4129FB300
ActiveVishay Dale
RES 41.2 OHM 1% 1/4W MELF 0204
SMM02040C4129FB300
ActiveVishay Dale
RES 41.2 OHM 1% 1/4W MELF 0204
Description
General part information
SMM02040C4129FB300
41.2 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | SMM02040C4129FB300 |
|---|---|
| Composition | Thin Film |
| Features | Anti-Sulfur, Pulse Withstanding, Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0204, MELF |
| Package Name | Mini MELF |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 41.2 Ohm |
| Size / Dimension Diameter | 0.055 in |
| Size / Dimension Length | 0.142 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
