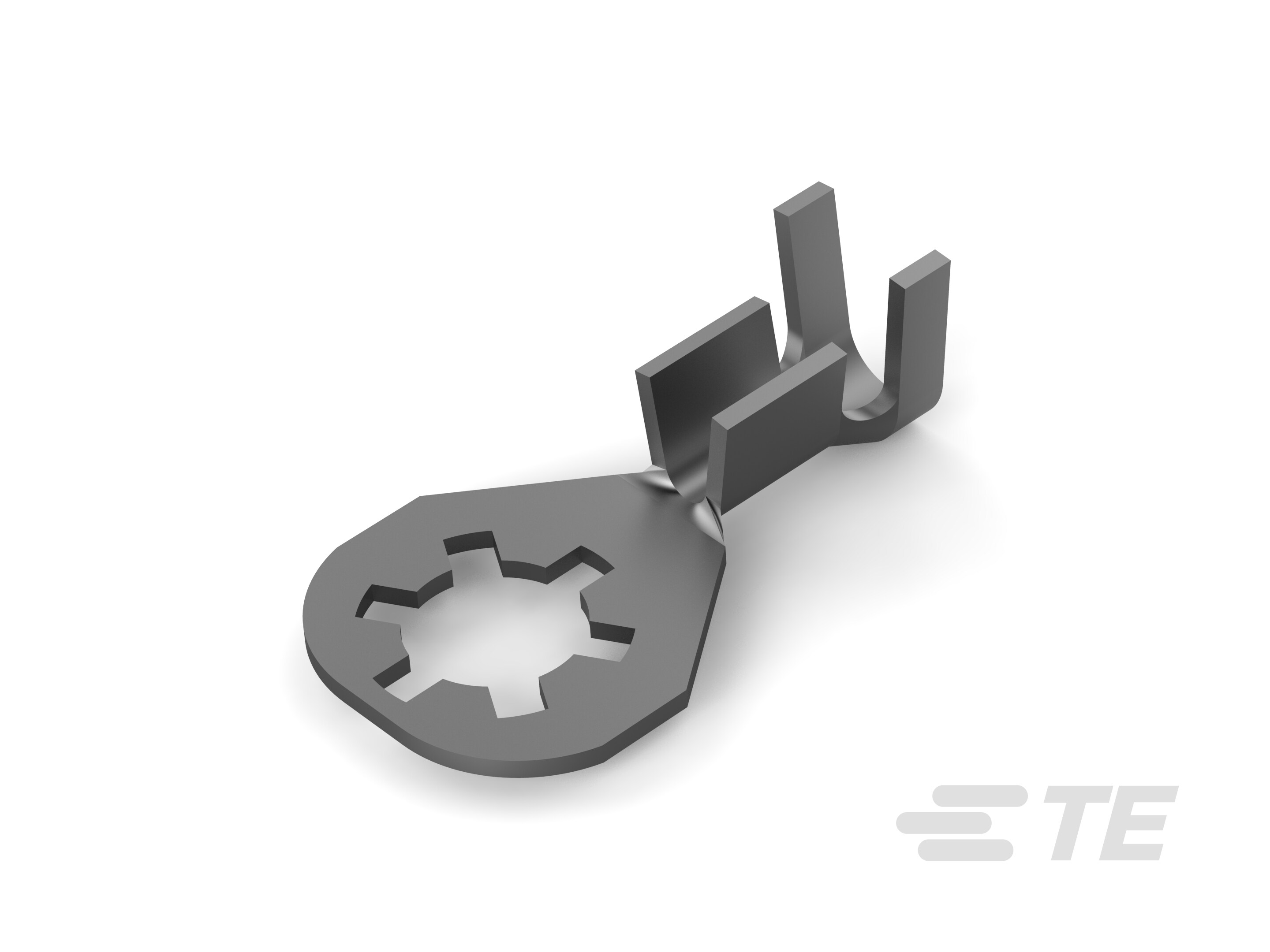

RING 18-14 AWG TPSTL-63482-1

63482-1

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-18AWG #10

Find alt
RING 18-14 AWG TPSTL-63482-1

63482-1

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-18AWG #10

Find alt

Description

General part information

63482-1

Closed Ring Tongue Terminal, 18 – 14 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification63482-1
Contact FinishTin
Contact MaterialSteel
FeaturesSerrated Termination, Inner Teeth
InsulationNon-Insulated
Length - Overall0.772 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size10 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.025 in
Width - Outer Edges0.445 in
Wire Gauge (AWG) (Max)18 AWG
Wire Gauge (AWG) (Min)14 AWG
