ActiveTE Connectivity AMP Connectors

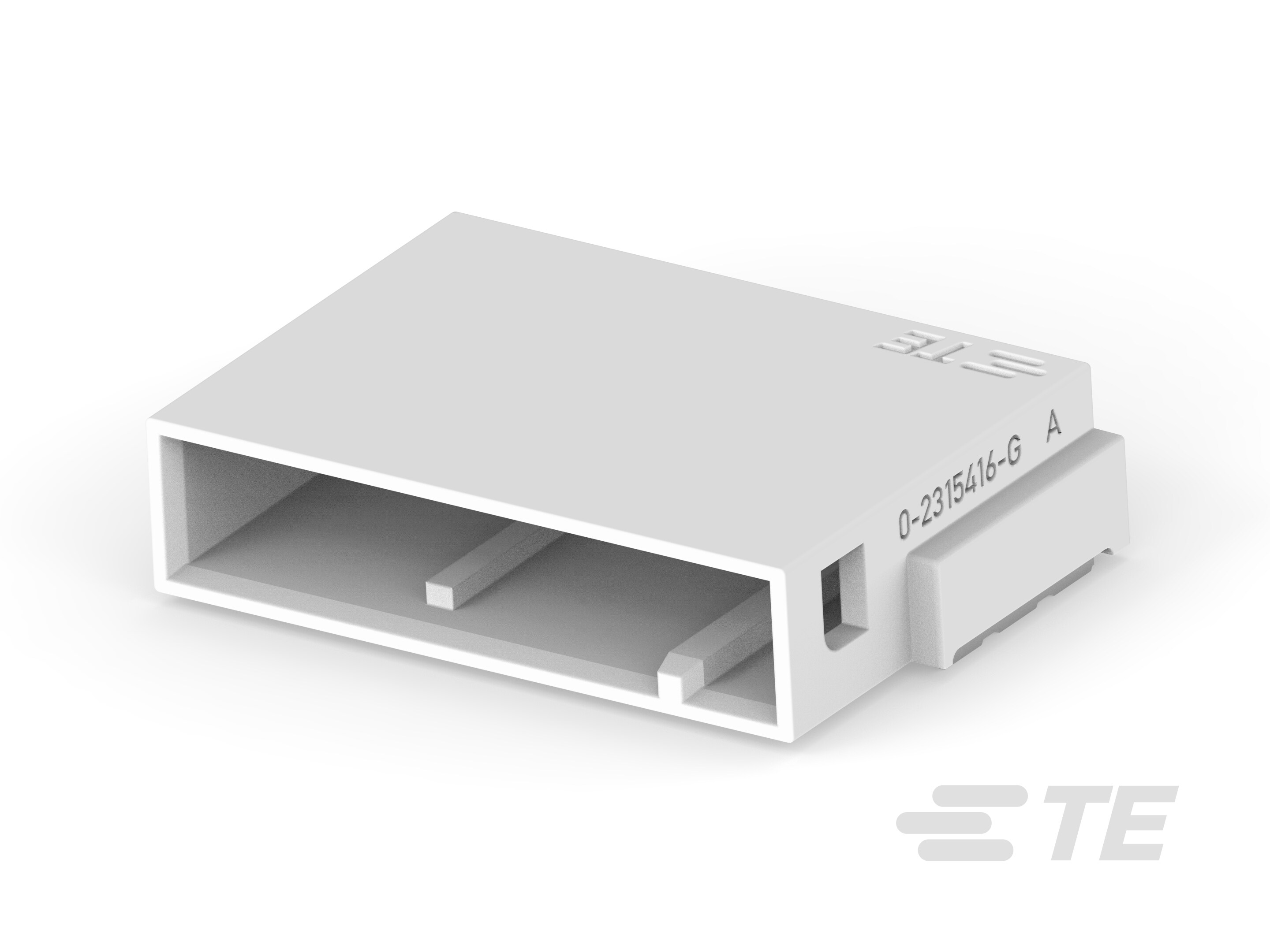

10POS,TAB0.5X0.4,HDR ASSY,90DEG,SMD
2-2315415-2
ActiveTE Connectivity AMP Connectors
10POS,TAB0.5X0.4,HDR ASSY,90DEG,SMD
Description
General part information
2-2315415-2
Horizontal, Wire-to-Board, 10 Position, 1 Rows, 1.8mm [.07in] Centerline, Tin (Sn), Printed Circuit Board, 3A Contact Current Rating (Max), Natural
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2315415-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.238 in |
| Insulation Material | Nylon 4T, Polyamide (PA4T), Glass Filled |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.071 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 24 V |
