Description
General part information

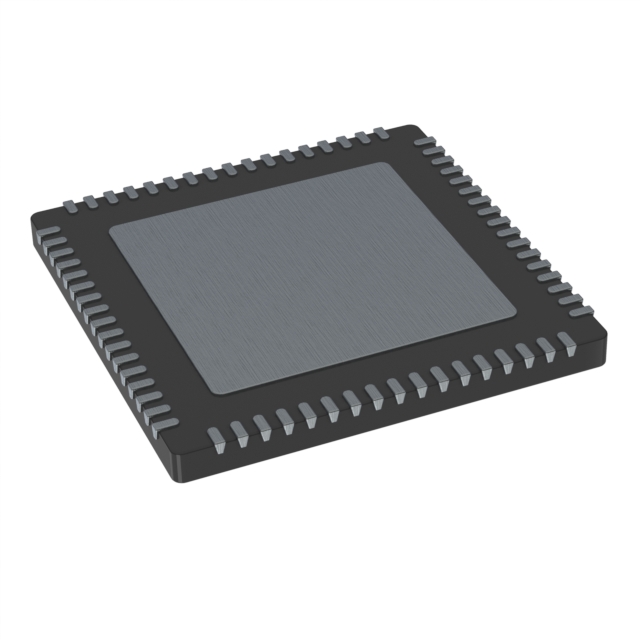

CYPD727268LQXQXQSA1
USB TYPE-C PD CTRL, -40 TO 105DEG C ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | CYPD727268LQXQXQSA1 |
|---|---|
| Applications | USB Type C |
| Controller Series | EZ-PD™ |
| Core Processor | ARM® Cortex®-M0 |
| Interface | I2C, SPI, UART, USB |
| Mounting Type | Surface Mount |
| Number of I/O | 19 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 68-UFQFN Exposed Pad |
| Package Length | 8 mm |
| Package Name | 68-QFN |
| Package Width | 8 mm |
| Program Memory Size (FLASH) | 128 kB |
| Program Memory Size (ROM) | 32 kB |
| Program Memory Type | ROM, FLASH |
| RAM Size Depth | 16 K |
| RAM Size Width | 8 bit |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 4 V |
