5EFLA2S
ObsoleteTE Connectivity Corcom Filters
PWR ENT MOD RCPT IEC320-C14 PNL
5EFLA2S
ObsoleteTE Connectivity Corcom Filters
PWR ENT MOD RCPT IEC320-C14 PNL
Description
General part information
5EFLA2S

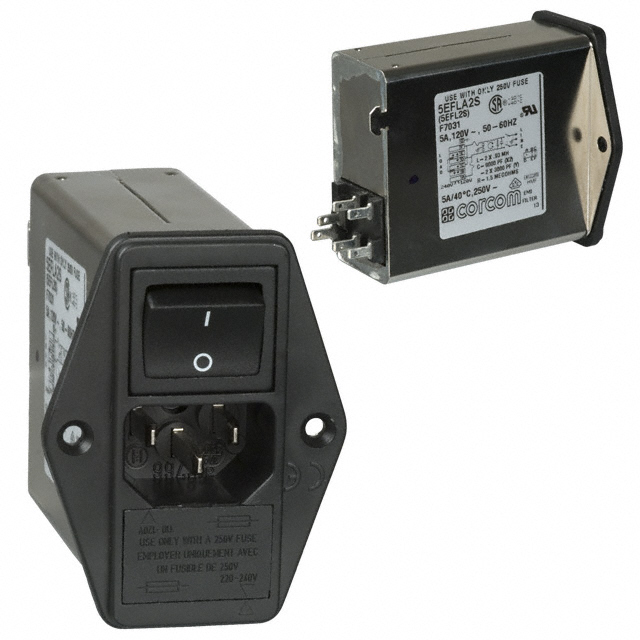

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | 5EFLA2S |
|---|---|
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Approval Agency | VDE, SEV, CSA, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades - Module, Receptacle |
| Current Rating - Appliance Inlet | 5 A |
| Current Rating - Filter | 5 A |
| Filter Application | Commercial |
| Filter Subtype | EMI, RFI |
| Filter Type | Filtered |
| Fuse Holder, Drawer | Twin Fused, Fuse Holder |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Panel Cutout Length | 30.23 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 61.47 mm |
| Switch Features | Switch On-Off |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 120 VAC |
