Description
General part information
125290

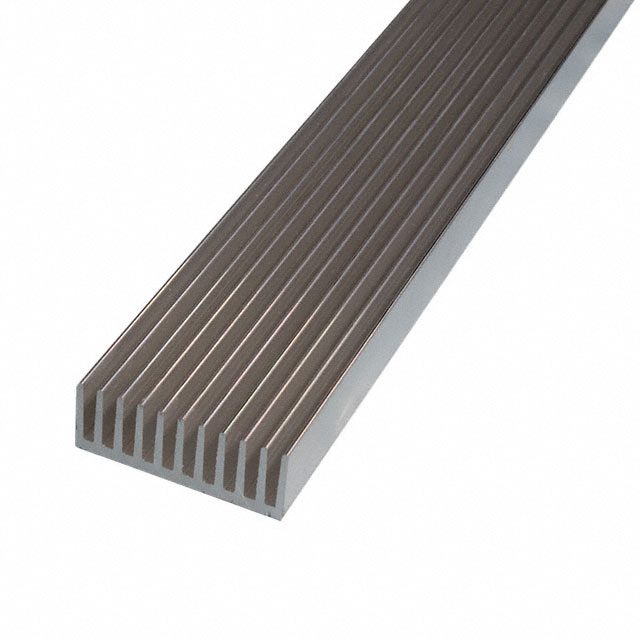

Heat Sink BGA Aluminum Top Mount, Extrusion
Technical Specifications
Parameters and characteristics for this part
| Specification | 125290 |
|---|---|
| Attachment Method | Adhesive |
| Fin Height | 0.65 in |
| Length | 36 in |
| Material | Aluminum |
| Package Cooled | BGA |
| Shape | Fins, Rectangular |
| Thermal Resistance | 1.95 °C/W |
| Type | Top Mount, Extrusion |
| Width | 1.75 in |
