FIE220-1-B
ObsoleteTriad Magnetics
FIXED IND 11.7UH 120A 1 MOHM TH
FIE220-1-B
ObsoleteTriad Magnetics
FIXED IND 11.7UH 120A 1 MOHM TH
Description
General part information
FIE220-1-B

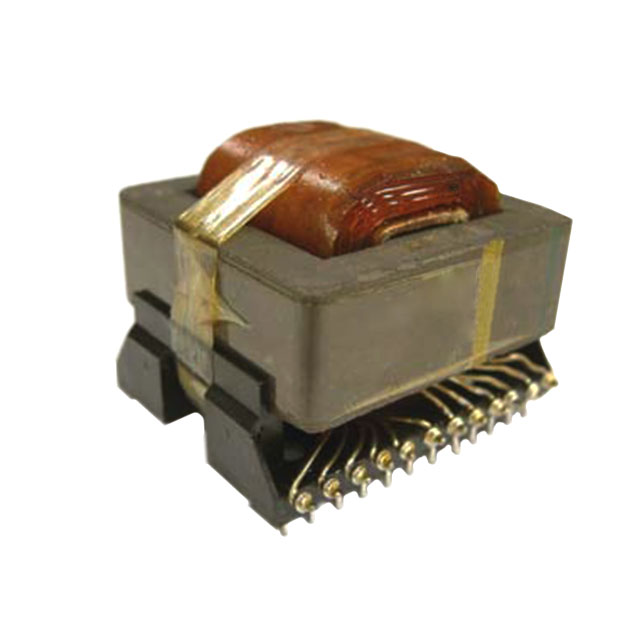

11.7 µH Unshielded Drum Core, Wirewound Inductor 120 A 1mOhm 24-DIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FIE220-1-B |
|---|---|
| Current Rating | 120 A |
| DC Resistance (DCR) | 1 mOhm |
| Height - Seated (Max) | 2.05 in |
| Inductance | 11.7 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module |
| Shielding | Unshielded |
| Size / Dimension Length | 2.35 in |
| Size / Dimension Width | 2.05 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
