C8132/18 100

Active

3M (TC)

CBL RIBN 18COND 0.156 GRAY 100'

Search across all available documentation for this part.

Active

3M (TC)

CBL RIBN 18COND 0.156 GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Part	Ribbon Width	Ribbon Width	Pitch [x]	Pitch [x]	First Conductor Mark	Cable Type	Voltage	Length [x]	Length [x]	Shielding	Ribbon Thickness	Ribbon Thickness	Features	Ratings	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Insulation Resistance	Conductor Material	Jacket Color
3M (TC) C8132/18 100	69.8 mm	2.748 in	0.156 in	3.96 mm	Red	Flat Cable	300 V	100 ft	30.48 m	Unshielded	1.96 mm	0.077 in	Zippable	UL Style 20462	18	18 AWG	30 AWG	19 Strands	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	Gray
3M (TC) C8132/06 100	22.25 mm	0.876 in	0.156 in	3.96 mm	Red	Flat Cable	300 V	100 ft	30.48 m	Unshielded	1.96 mm	0.077 in	Zippable	UL Style 20462	6	18 AWG	30 AWG	19 Strands	-20 C	105 ░C	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

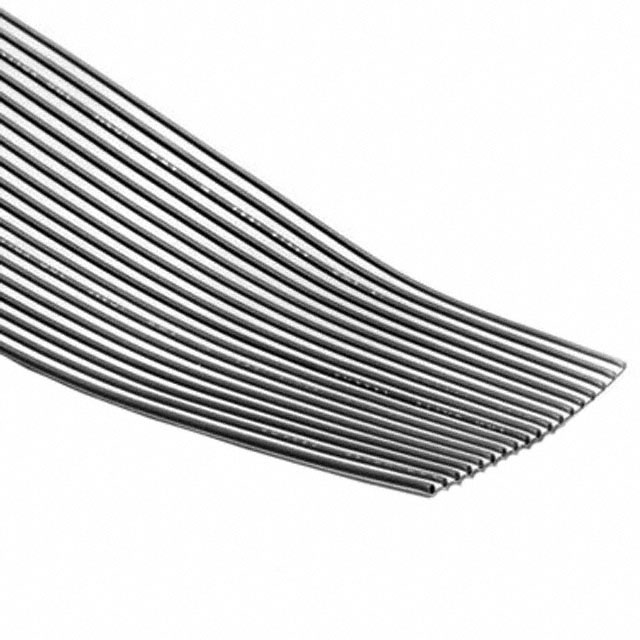

Flat Ribbon Cable Gray 18 Conductors 0.156" (3.96mm) Flat Cable 100.0' (30.48m)
