Description
General part information

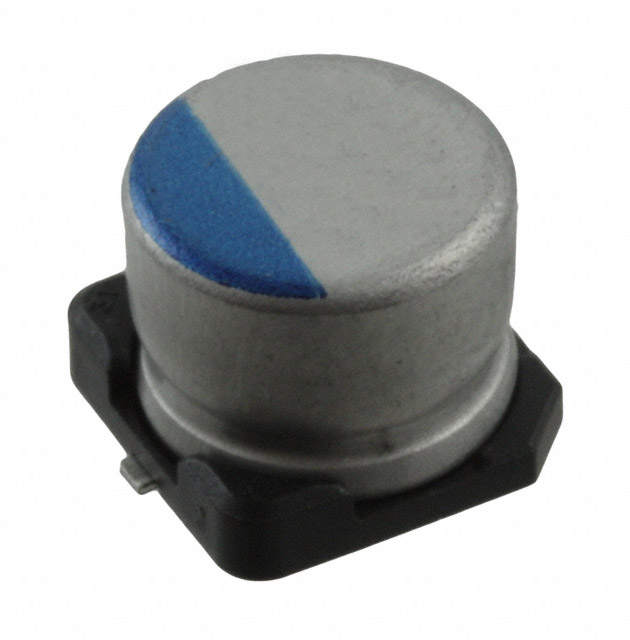

PCV1E820MCL2GS
82 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 47mOhm 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PCV1E820MCL2GS |
|---|---|
| Applications | General Purpose |
| Capacitance | 82 µF |
| ESR (Equivalent Series Resistance) | 47 mOhm |
| Height - Seated (Max) | 0.276 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ratings | AEC-Q200 |
| Ripple Current | 1.4 A |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 25 VAC |
