1-100605-2
ActiveTE Connectivity AMP Connectors
250 FASTON,REC.,14-17AWG,PTPB
1-100605-2
ActiveTE Connectivity AMP Connectors
250 FASTON,REC.,14-17AWG,PTPB
Description
General part information
1-100605-2

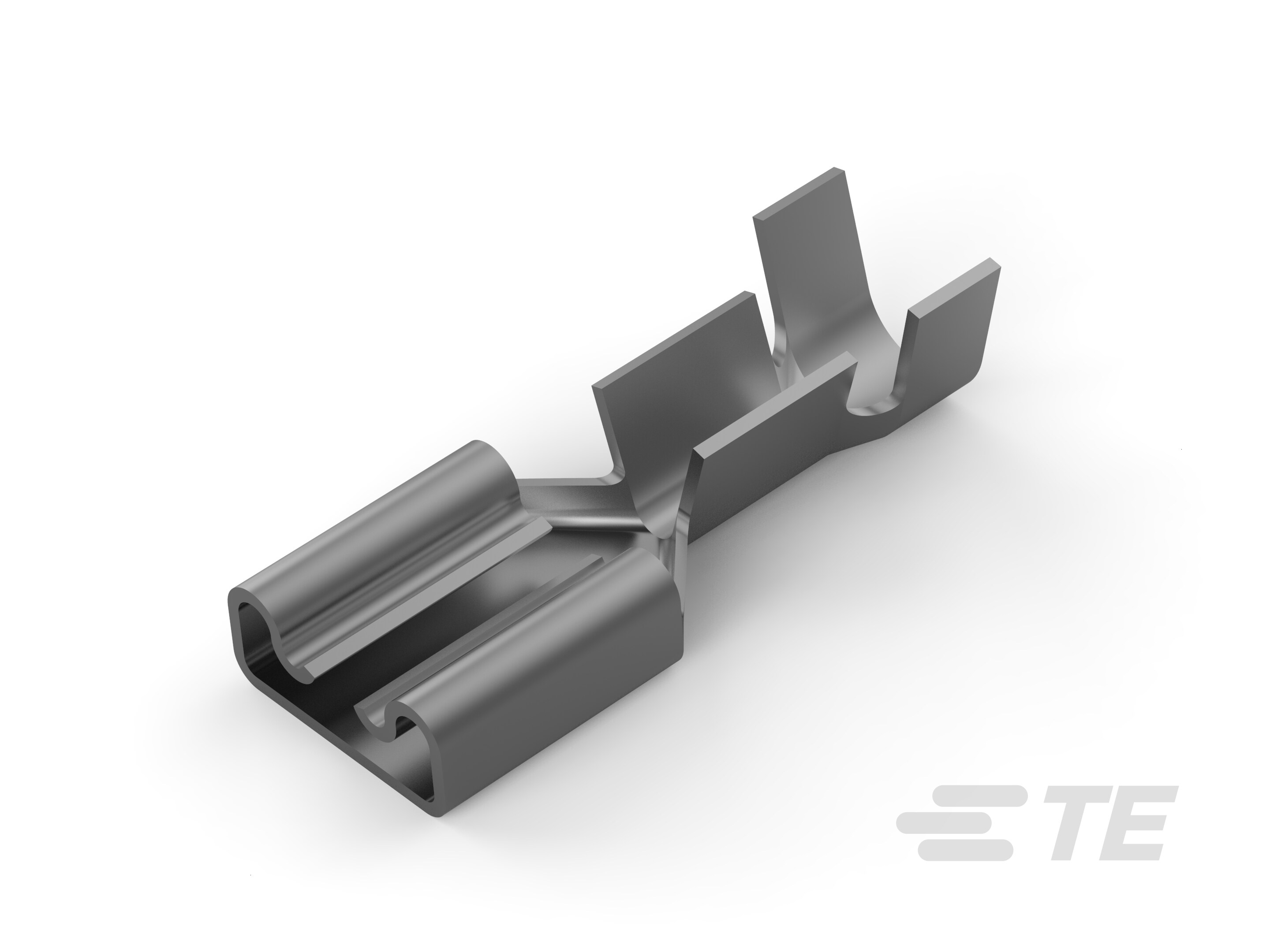

Quick Disconnect Receptacle, 14 – 18 AWG, 1 – 2.5 mm² Wire, 1900 – 2974 CMA, 6.35 mm [.25 in] Tab Width, Straight, Brass, Pre-Tin Plating, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-100605-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall | 0.843 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.295 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 17 AWG |
| Wire Gauge (AWG) (Min) | 13 AWG |
