440456-1
ActiveTE Connectivity AMP Connectors
67544-51 BS2 TERMINAL
440456-1
ActiveTE Connectivity AMP Connectors
67544-51 BS2 TERMINAL
Description
General part information
440456-1

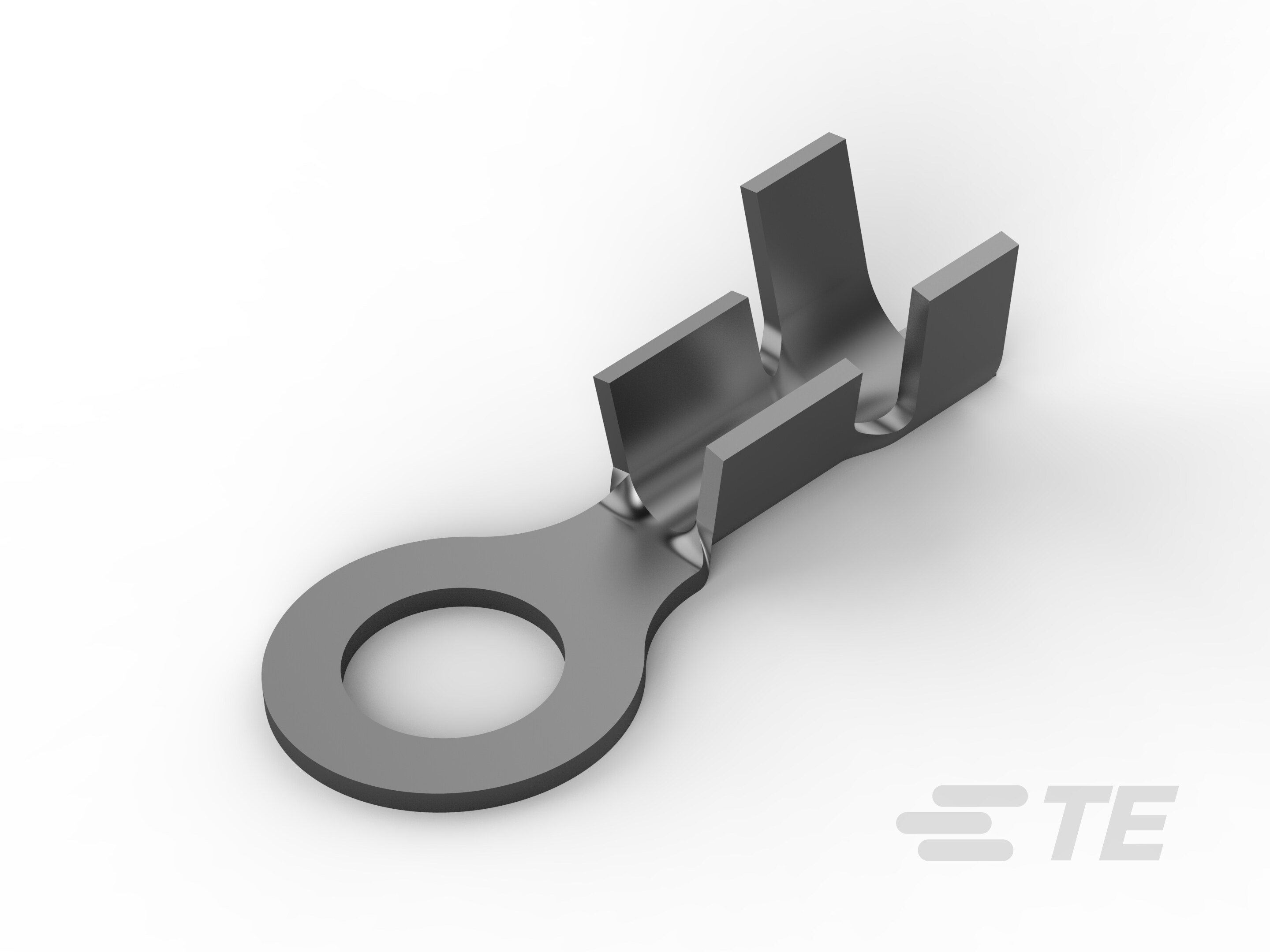

Closed Ring Tongue Terminal, 20 – 16 AWG, #8 / M4 Stud, 4.4 mm [.173 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 440456-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 1.372 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.02 in |
| Width - Outer Edges | 0.295 in |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
