PE4125
ActivePasternack

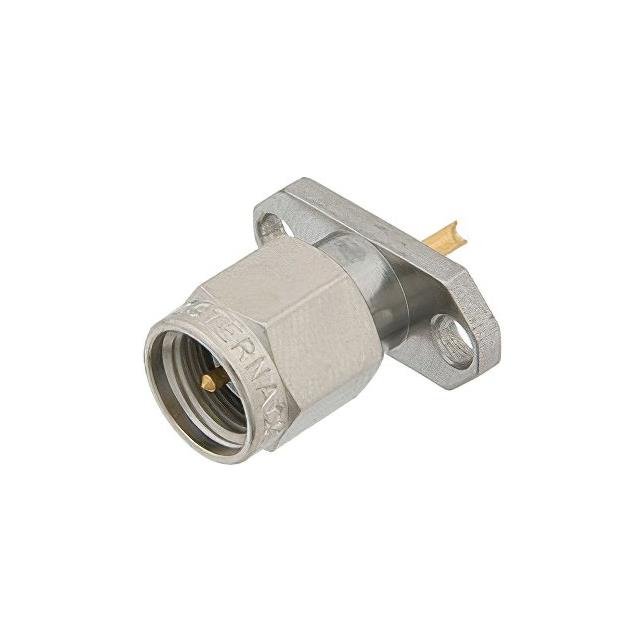

SMA MALE CONNECTOR SOLDER ATTACH
PE4125
ActivePasternack
SMA MALE CONNECTOR SOLDER ATTACH
Description
General part information
PE4125
SMA Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4125 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
