AXA-MPSF
ActivePasternack
ADPMCX PLUG / SMA JACK
AXA-MPSF
ActivePasternack
ADPMCX PLUG / SMA JACK
Description
General part information
AXA-MPSF

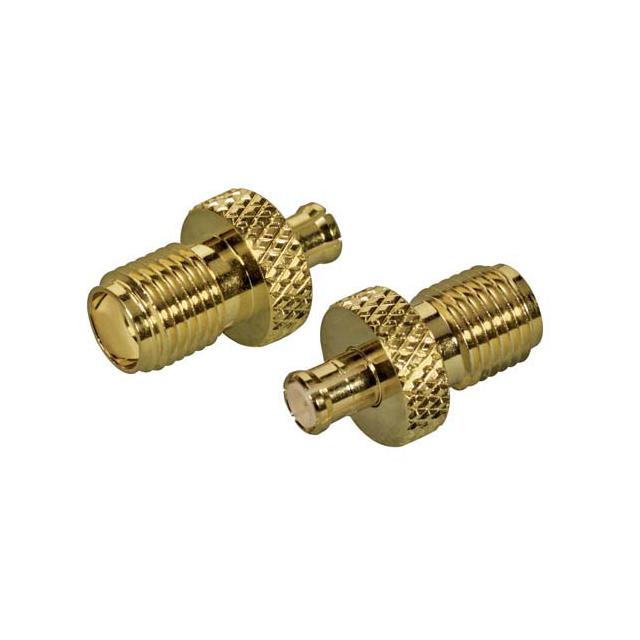

Adapter Coaxial Connector MCX Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA-MPSF |
|---|---|
| Adapter Series | SMA to MCX |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, MCX Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMA Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.2 dB |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
