Description
General part information

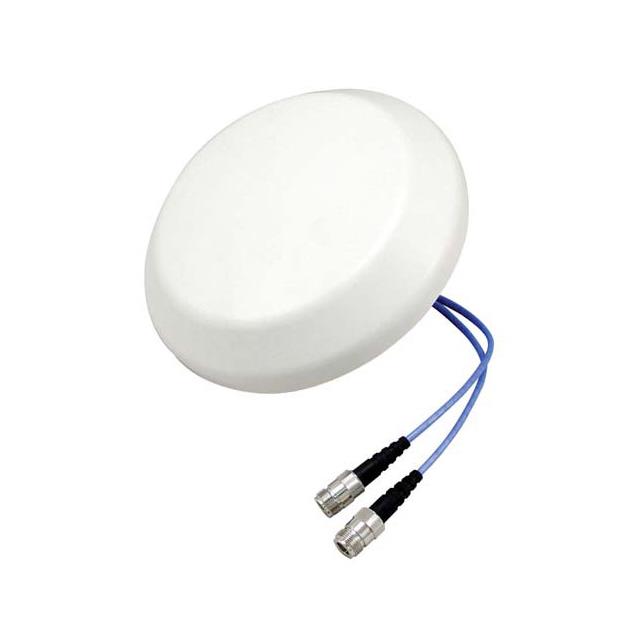

HG72706DPCUPR-NF
RF ANTENNA 802.11a/b/g/n, AWS, DAS, LTE, PCS Module N Type Female (2) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | HG72706DPCUPR-NF |
|---|---|
| Antenna Type | Module |
| Applications | PCS, 802.11a/b/g/n, AWS, LTE, DAS |
| Features | 279.4mm, Cable |
| Frequency (Band) | 2.205 GHz |
| Frequency (Center) | 829 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 6.1dBi, 3.5dBi |
| Gain | 6.1 dBi, 3.5 dBi |
| Height (Max) | 1.8 in |
| Mounting Type | Through Hole |
| Number of Bands | 2 |
| Power - Max | 50 VA |
| RF Family/Standard | WiFi, Cellular |
| Termination Count | 2 |
| Termination Type | N Type Female |
| VSWR | 1.8, 1.5, 1.6 |
