Description
General part information

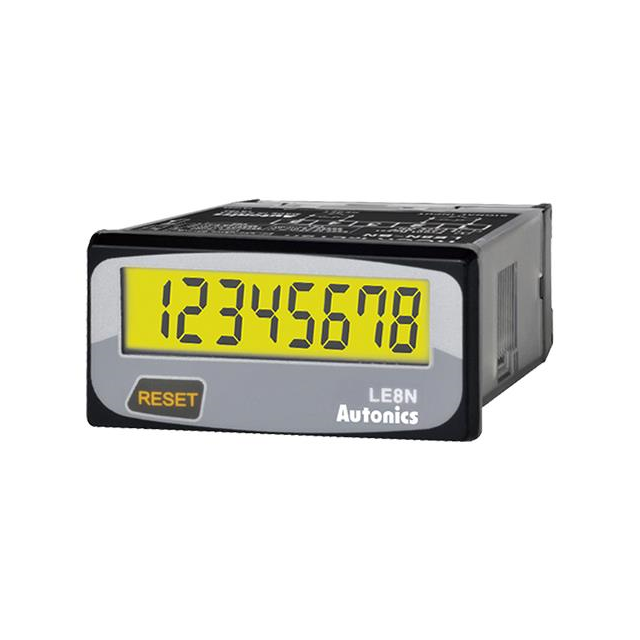

LE8N-BV-L
Time Counter (Hour Meter) None Required (Battery Included) Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LE8N-BV-L |
|---|---|
| Count Rate (Options) | Multiple |
| Display Characters - Height | 0.343 in |
| Display Type | LCD - Black Characters |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Input Type | Voltage |
| Mounting Type | Panel Mount |
| Number of Characters Per Row | 8 characters |
| Operating Mode | Up |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Panel Cutout Length | 45 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 22.2 mm |
| Reset | Front Panel, External |
| Termination Style | Screw Terminal |
| Time Format | Multiple |
| Type | Time Counter (Hour Meter) |
| Voltage - Supply | None Required (Battery Included) |
| Voltage - Supply Type | None Required (Battery Included) |
