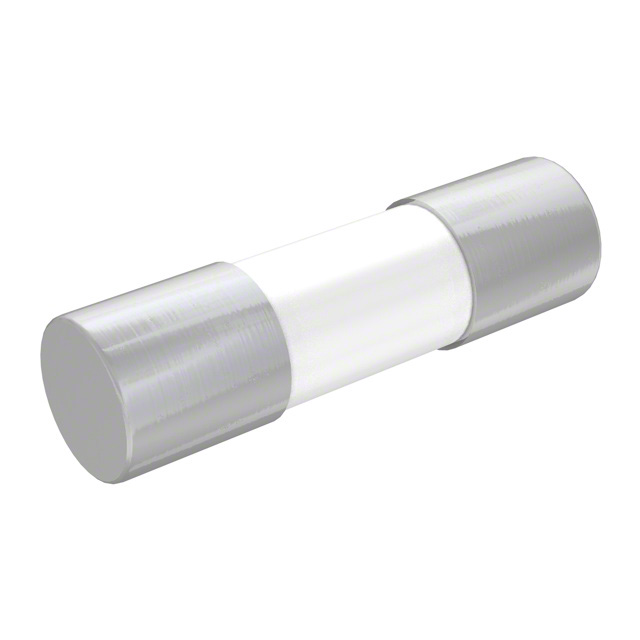

FWP-10A14FI
ActiveEaton - Electronics Division
10A 690V 14X51 INDICATED 14.3 X 50.8MM
FWP-10A14FI
ActiveEaton - Electronics Division
10A 690V 14X51 INDICATED 14.3 X 50.8MM
Description
General part information
FWP-10A14FI
10A 700 VAC 800 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWP-10A14FI |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 10 A |
| Features | Indicating |
| Fuse Type | Cartridge |
| Melting I²t | 38.5 |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension Diameter | 0.563 in |
| Size / Dimension Length | 2 in |
| Voltage Rating - AC | 700 V |
| Voltage Rating - DC | 800 V |
