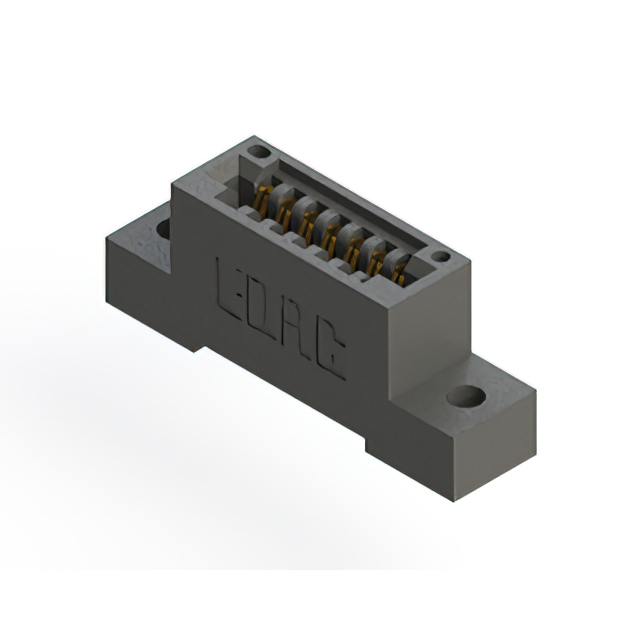

395-007-524-102
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-007-524-102
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-007-524-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-007 Series
...
| Part | Read Out | Card Type | Number of Positions | Gender | Contact Material | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Color | Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Finish | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 3.25 mm | 0.128 in | 7 | 1 | 10 Áin | 0.25 Ám | Black | Solder | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | ||||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 7 | 1 | 10 Áin | 0.25 Ám | Black | Solder | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 3.25 mm | 0.128 in | 7 | 1 | 10 Áin | 0.25 Ám | Black | Solder | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Gold | Polyester Thermoplastic | ||||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 7 | 1 | 10 Áin | 0.25 Ám | Black | Wire Wrap | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 7 | 1 | 10 Áin | 0.25 Ám | Black | Wire Wrap | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 7 | 1 | 10 Áin | 0.25 Ám | Black | Solder | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 7 | 1 | 10 Áin | 0.25 Ám | Black | Solder | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 3.25 mm | 0.128 in | 7 | 1 | 10 Áin | 0.25 Ám | Black | Solder | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | ||||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 7 | 1 | 10 Áin | 0.25 Ám | Black | Solder | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Gold | Polyester Thermoplastic | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Single | Non Specified - Single Edge | 7 | Female | Copper Alloy | 7 | 1 | 10 Áin | 0.25 Ám | Black | Wire Wrap | 1 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Gold | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
