880584-4

Active

TE Connectivity AMP Connectors

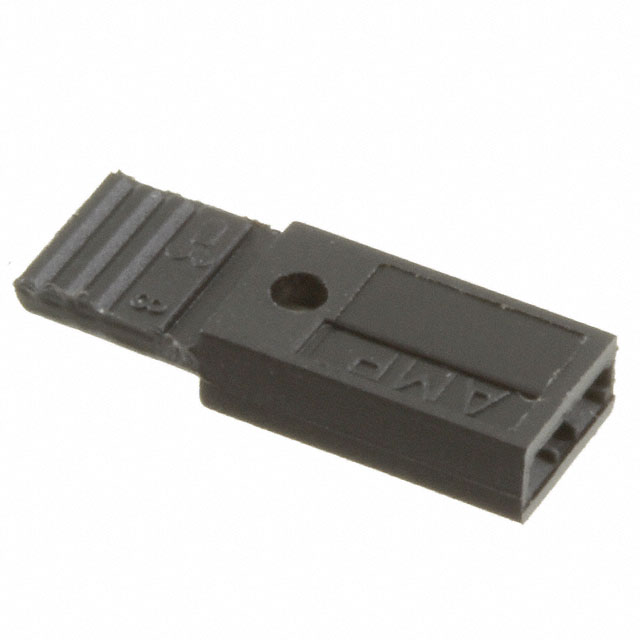

CONN SHUNT 2POS .100 CLOSED TOP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SHUNT 2POS .100 CLOSED TOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	880584-4	880584 Series

Color	Black	Black, Natural
Contact Finish	Tin	Gold, Tin
Contact Finish Thickness	-	0.38 - 0.76 Ám
Contact Finish Thickness	-	15 - 30 Áin
Current Rating (Amps)	3 A	3 A
Gender	Female Sockets	Female Sockets
Height [z]	0.551 in	0.551 in
Height [z]	14 mm	14 mm
Housing Material	Thermoplastic	Thermoplastic, Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2	1 x 2
Number of Positions or Pins (Grid) [custom]	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Type	Closed Top, Grip	Closed Top, Grip

SHUNT CLOSED TOP 2POS .100 GOLD

Part	Material Flammability Rating	Gender	Height [z]	Height [z]	Current Rating (Amps)	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Housing Material	Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color
TE Connectivity AMP Connectors 880584-2	UL94 V-0	Female Sockets	0.551 in	14 mm	3 A	Gold	1 x 2	2	Thermoplastic	Closed Top, Grip	0.76 Ám	30 Áin	2.54 mm	0.1 in	Black
TE Connectivity AMP Connectors 880584-4	UL94 V-0	Female Sockets	0.551 in	14 mm	3 A	Tin	1 x 2	2	Thermoplastic	Closed Top, Grip			2.54 mm	0.1 in	Black
TE Connectivity AMP Connectors 1-880584-1	UL94 V-0	Female Sockets	0.551 in	14 mm	3 A	Gold	1 x 2	2	Thermoplastic, Glass Filled	Closed Top	0.38 µm	15 µin	2.54 mm	0.1 in	Black
TE Connectivity AMP Connectors 880584-5	UL94 V-0	Female Sockets	0.551 in	14 mm	3 A	Gold	1 x 2	2	Thermoplastic, Glass Filled	Closed Top, Grip	0.38 µm	15 µin	2.54 mm	0.1 in	Natural
TE Connectivity AMP Connectors 880584-1	UL94 V-0	Female Sockets	0.551 in	14 mm	3 A	Gold	1 x 2	2	Thermoplastic	Closed Top, Grip	0.38 µm	15 µin	2.54 mm	0.1 in	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.100" (2.54mm) Tin
