ALSR103K300FE12
ActiveVishay Dale

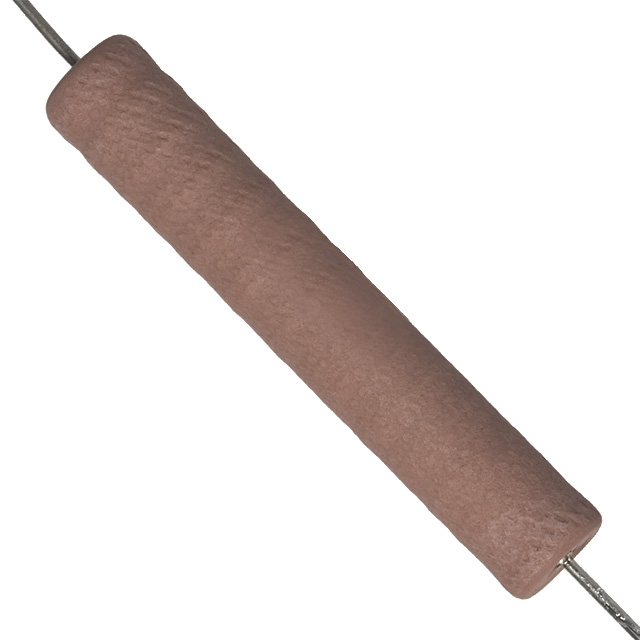

RES 3.3K OHM 7W 1% AXIAL
ALSR103K300FE12
ActiveVishay Dale
RES 3.3K OHM 7W 1% AXIAL
Description
General part information
ALSR103K300FE12
3.3 kOhms ±1% 7W Through Hole Resistor Axial Moisture Resistant Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | ALSR103K300FE12 |
|---|---|
| Composition | Wirewound |
| Features | Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 250 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 7 W |
| Resistance | 3.3 kOhm |
| Size / Dimension Diameter | 0.312 in |
| Size / Dimension Length | 1.73 in |
| Temperature Coefficient | 30 ppm/¯C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
