PAC1011410
ActiveStarTech.com
HEAVY DUTY EXTENSION CORD
PAC1011410
ActiveStarTech.com
HEAVY DUTY EXTENSION CORD
Description
General part information
PAC1011410

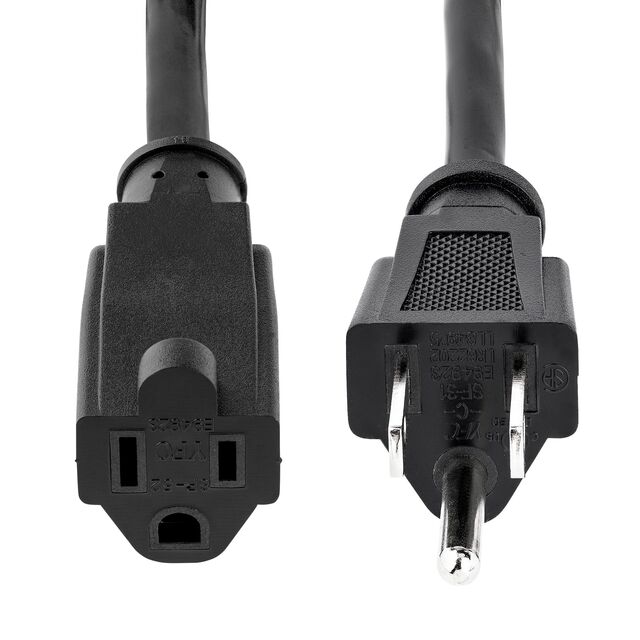

10.00' (3.05m) Power Cord Black NEMA 5-15R To NEMA 5-15P SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | PAC1011410 |
|---|---|
| 1st Connector | NEMA 5-15R |
| 2nd Connector | NEMA 5-15P |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 15 A |
| Length | 10 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 3 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
