Description
General part information

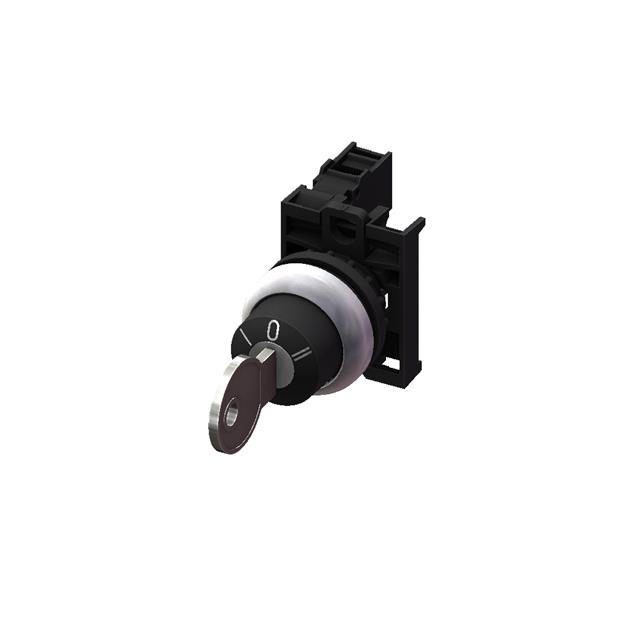

M22K-30SF10-B
Keylock Switch 3 Position SPST 6A (AC), 3A (DC) 230 VAC 24 VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | M22K-30SF10-B |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 45 ° |
| Circuit | SPST |
| Contact Finish | Silver |
| Contact Material | Silver-Nickel Alloy |
| Current Rating | 6 A, 3 A |
| Number of Positions | 3 |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Removable Positions | All |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 24 V |
