LMR-400-UF-4195M-SM(QTY:75ft)
ActiveMcGill Microwave Systems
LMR 400 UF CABLE ASSY 75FT 4195M
LMR-400-UF-4195M-SM(QTY:75ft)
ActiveMcGill Microwave Systems
LMR 400 UF CABLE ASSY 75FT 4195M
Description
General part information
LMR-400-UF-4195M-SM(QTY:75ft)

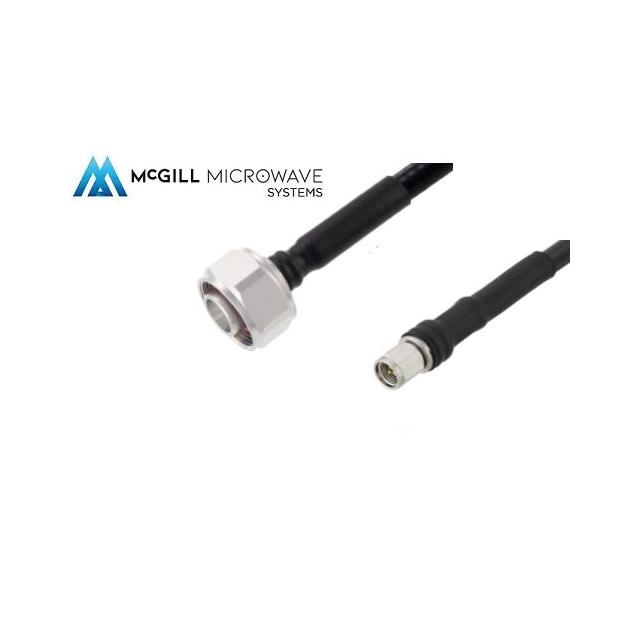

Cable Assembly Coaxial 4.1/9.5 to SMA LMR 400 900.0" (22.9m) 75.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-UF-4195M-SM(QTY:75ft) |
|---|---|
| 1st Connector | 4.1/9.5 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.1 mm |
| 1st Connector Dimension (2) | 9.5 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.1 mm |
| 1st Connector Size (Dimension 2) | 9.5 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Length | 900 in |
| Length (ft) | 75 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | 4.1/9.5 to SMA |
