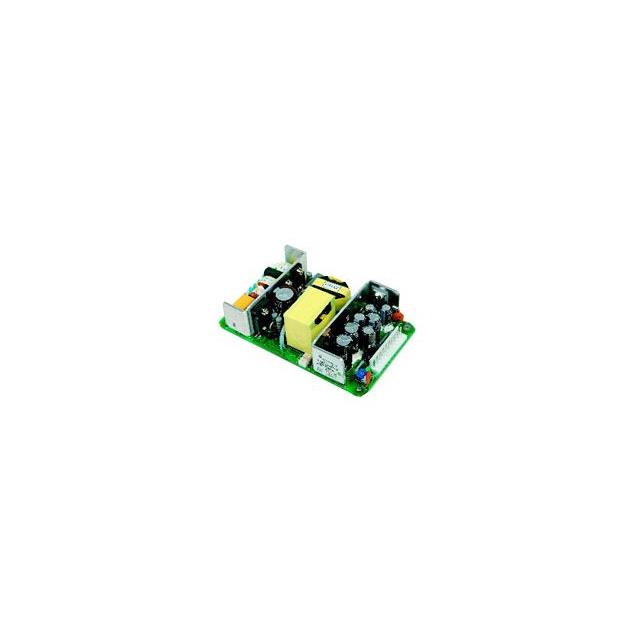

PMK130T-A-A
ActiveAstrodyne TDI
AC/DC CONVERTER 5V +/-12V 147W
PMK130T-A-A
ActiveAstrodyne TDI
AC/DC CONVERTER 5V +/-12V 147W
Description
General part information
PMK130T-A-A
Open Frame AC DC Converters 3 Output 5V 12V -12V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PMK130T-A-A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output 1 | 15 A |
| Current - Output 2 | 5 A |
| Current - Output 3 | 1 A |
| Efficiency | 80 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | Yes |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 147 W |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4242 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | -12 V |
